DW-AS-701-M18-673
| Operating range | 10 mm |
| Switching frequency max. | 15 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 60 bar |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 63.5 mm |
| Mounting | Embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|
Inductives Sensor Weld-immune-Full-Inox-Series-700-Stainless-steel-V2A-M18-Embeddable-10-mm-NPN DW-AS-701-M18-673

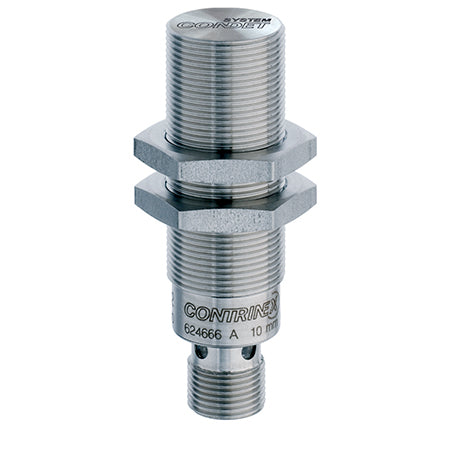

Weld immune Full Inox Series 700 Stainless steel V2A M18 Embeddable 10 mm NPN
SKU: DW-AS-701-M18-673
Regular price
From $166.62
Secure Checkout
Need help? Click here to contact an expert
DW-AS-701-M18-673
| Operating range | 10 mm |
| Switching frequency max. | 15 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 60 bar |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 63.5 mm |
| Mounting | Embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|
Inductives Sensor Weld-immune-Full-Inox-Series-700-Stainless-steel-V2A-M18-Embeddable-10-mm-NPN DW-AS-701-M18-673
