DW-AS-713-M30-693
| Operating range | 40 mm |
| Switching frequency max. | 90 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 40 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | ActivStone-Coated S.Steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 63.5 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|

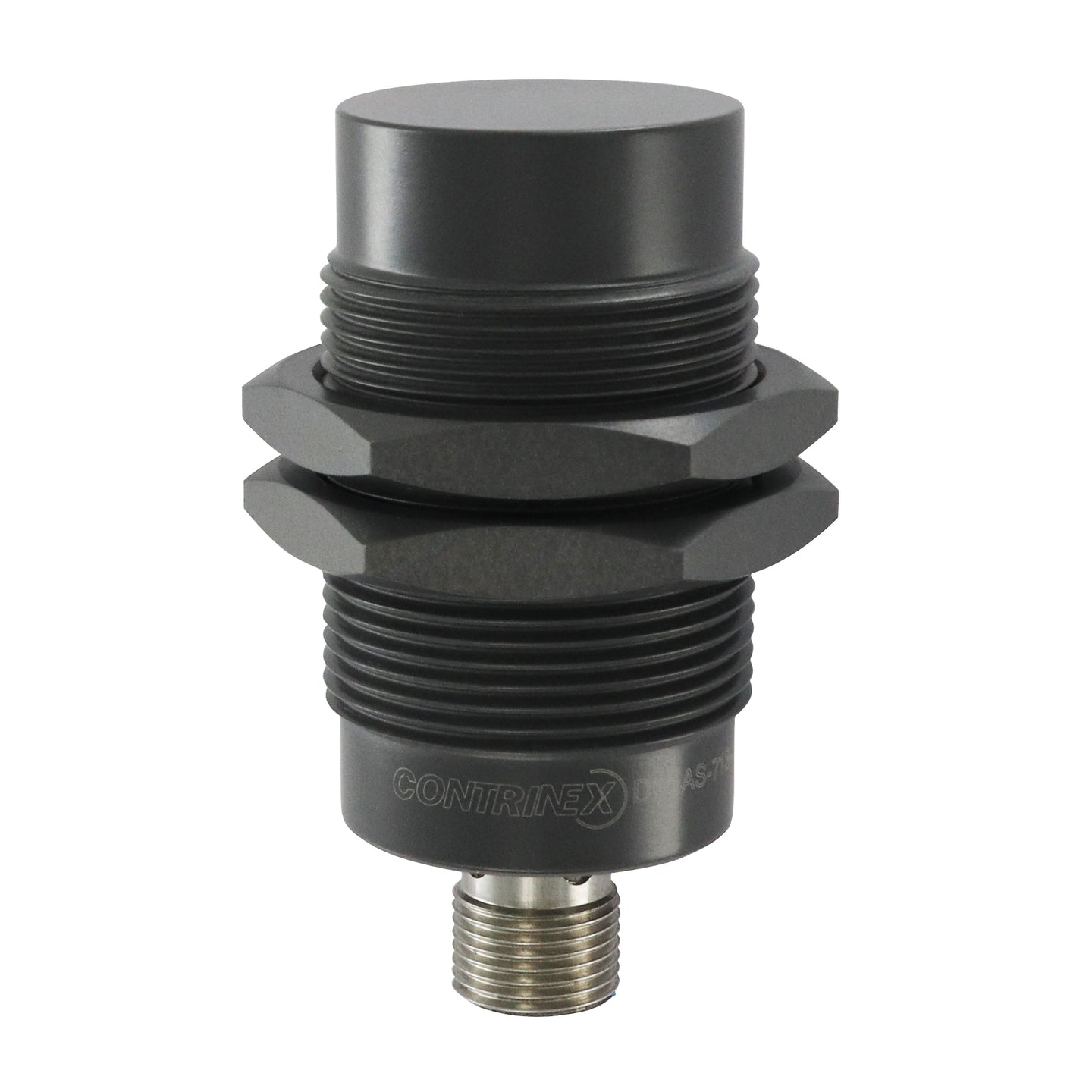

Inductives Sensor Weld-immune-Full-Inox-Series-700-ActivStone-Coated-SSteel-V2A-M30-Non-embeddable-40-mm-PNP DW-AS-713-M30-693
Weld immune Full Inox Series 700 ActivStone Coated S.Steel V2A M30 Non embeddable 40 mm PNP
SKU: DW-AS-713-M30-693
Regular price
$169.35
