DW-AS-623-M30-673
| Operating range | 14 mm |
| Switching frequency max. | 15 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO) |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+70°C |
| Sensor Height | 63.5 mm |
| Mounting | Embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|

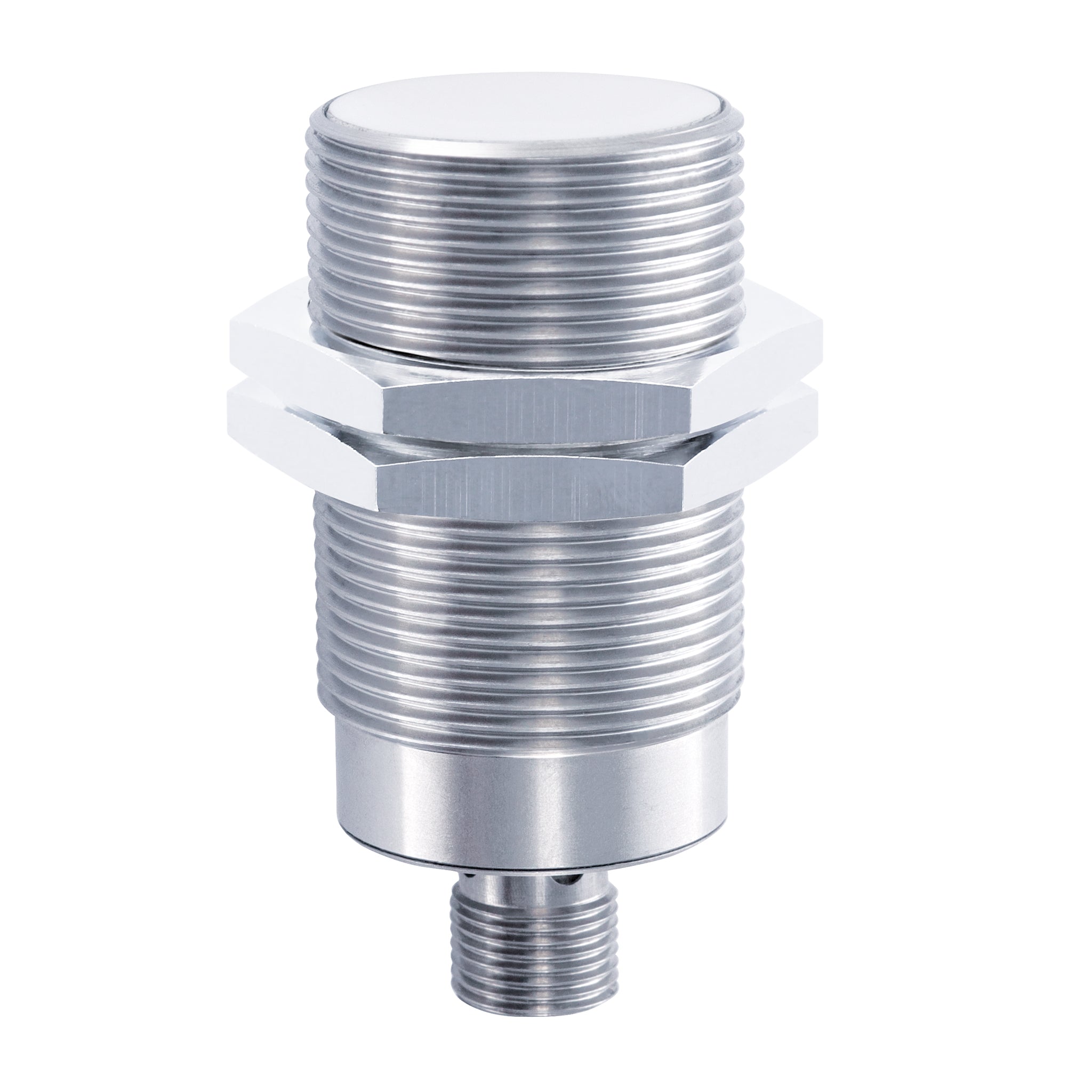

Inductives Sensor Weld-immune-Classics-Series-600-Stainless-steel-V2A-M30-Embeddable-14-mm-PNP DW-AS-623-M30-673
Weld immune Classics Series 600 Stainless steel V2A M30 Embeddable 14 mm PNP
SKU: DW-AS-623-M30-673
Regular price
$132.87
