Short Specifications

TRU-C23PA-TMK-101

Operating range 0...1000 mm
Switching frequency max. 1000 Hz
Supply voltage 15...30
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment Teach button
Connection PVC, 2 m, 4 wire
Housing size [mm] 20 x 30 (C23)
Enclosure rating IP 67
Housing material ABS
Sensitivity Range Adjustm 30...5000 mm
Temperature range -25...+65°C
Light source LED, UV 275 nm, Risk Group 2
Interface Standard output
Operating principle Transparent reflex
Sensing range max. 0...1200 mm

Downloads

Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

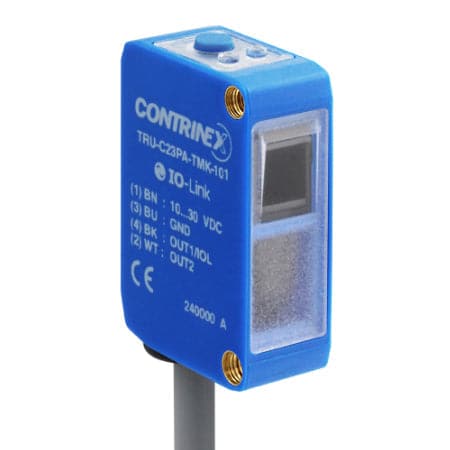

Transparent object Transparent reflex 20 x 30 (C23) 0...1000 mm ABS Teach button LED, UV 275 nm, Risk Group 2

SKU: TRU-C23PA-TMK-101

Connection: PVC, 2 m, 4 wire
Output: Light-on + Dark-on
Polarity: NPN
Price:
Sale price$156.90
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
