Short Specifications

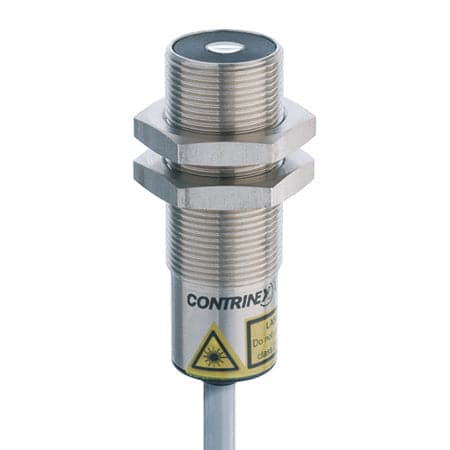

LLK-1181L-000
| Operating range | 50000 mm |
| Switching frequency max. | 5000 Hz |
| Supply voltage | 10...36 |
| Polarity | Emitter |
| Output | Test input |
| Sensitivity adjustment | 3-turn pot. |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -10...+50°C |
| Light source | Laser class 2, red 660 nm |
| Operating principle | Through-beam |
| Sensing range max. | 0 |
