Short Specifications


Operating range 6000 mm
Switching frequency max. 1000 Hz
Supply voltage 10...36
Polarity Emitter
Output Test input
Sensitivity adjustment 12-turn pot.
Connection PVC, 2 m, 3 wire
Housing size [mm] 30 x 30
Enclosure rating IP 67
Housing material PBTP (Crastin)
Temperature range -25...+55°C
Light source LED, infrared 880 nm
Operating principle Through-beam
Sensing range max. 0


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

Standard Through beam 30 x 30 6000 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm

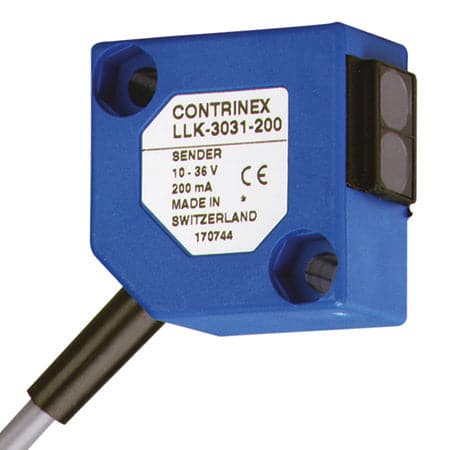

SKU: LLK-3031-200

Connection: PVC, 2 m, 3 wire
Output: Test input
Polarity: Emitter
Sale price$41.75
Re-stocking soon

Estimated Delivery Time 2-3 weeks
