Short Specifications

LRR-M12MA-NMK-101

Operating range 20...3200 mm
Switching frequency max. 1500 Hz
Supply voltage 10...30
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment No
Connection PVC, 2 m, 4 wire + 0
Housing size [mm] M12
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+65°C
Light source LED, red 645 nm
Interface Standard output
Operating principle Retro-reflex
Sensing range max. 15...4000 mm

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

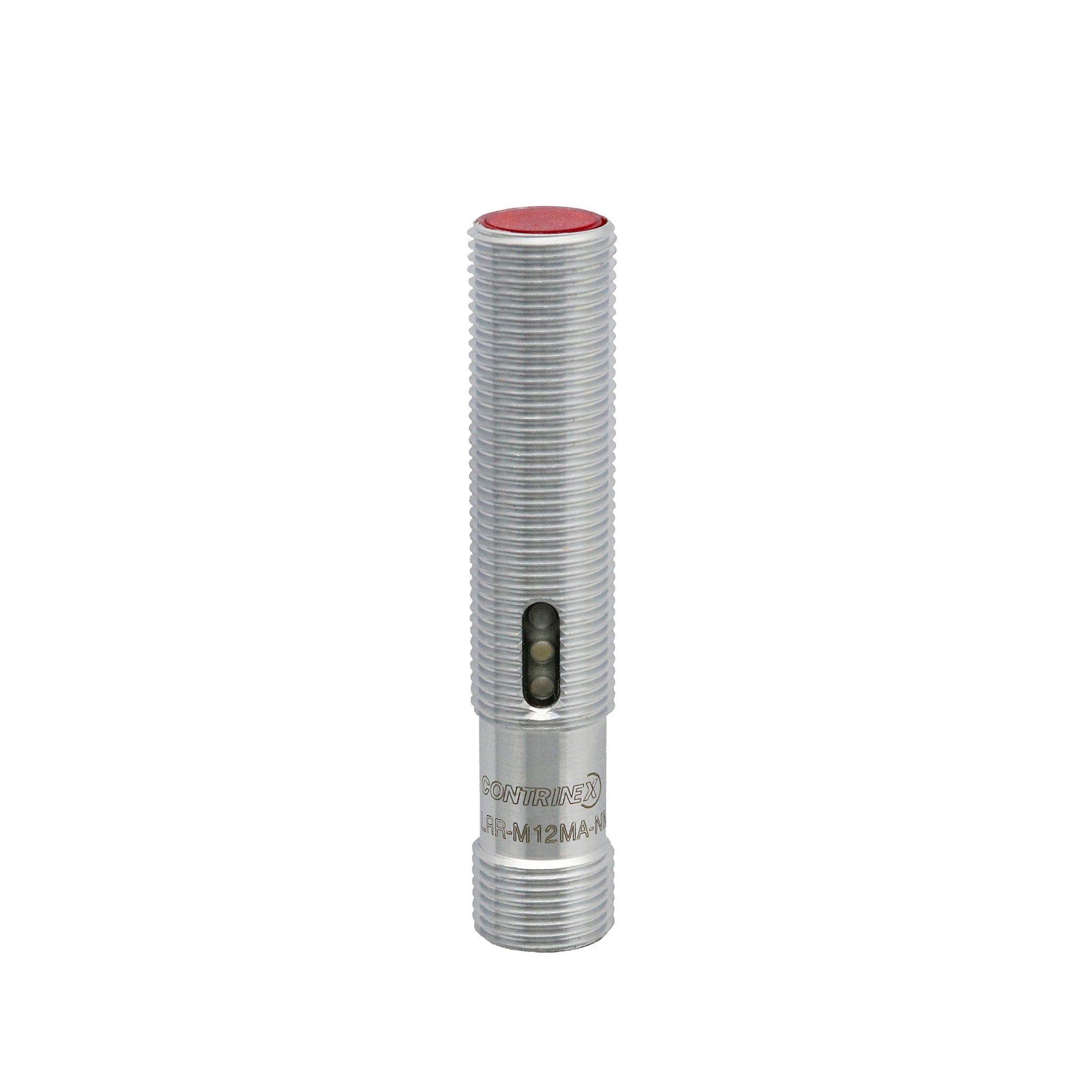

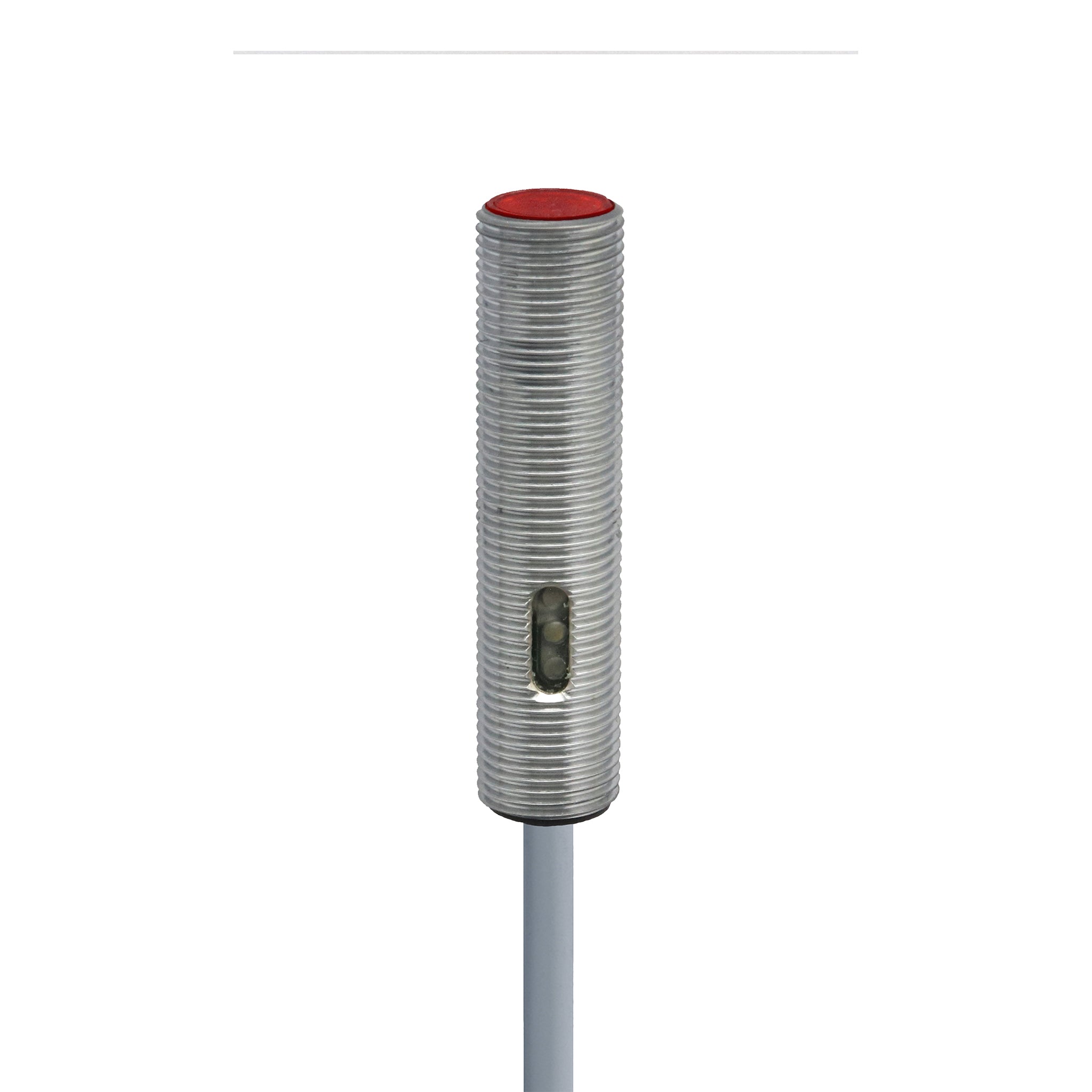

Standard Retro reflex M12 20...3200 mm Chrome plated brass LED, red 645 nm

SKU: LRR-M12MA-NMK-101

Connection: PVC, 2 m, 4 wire + 0
Output: Light-on + Dark-on
Polarity: NPN
