Short Specifications


Operating range 30...5500 mm
Switching frequency max. 1500 Hz
Supply voltage 10...30
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment No
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Light source LED, red 630 nm
Interface Standard output
Operating principle Reflex
Sensing range max. 20...7000 mm


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

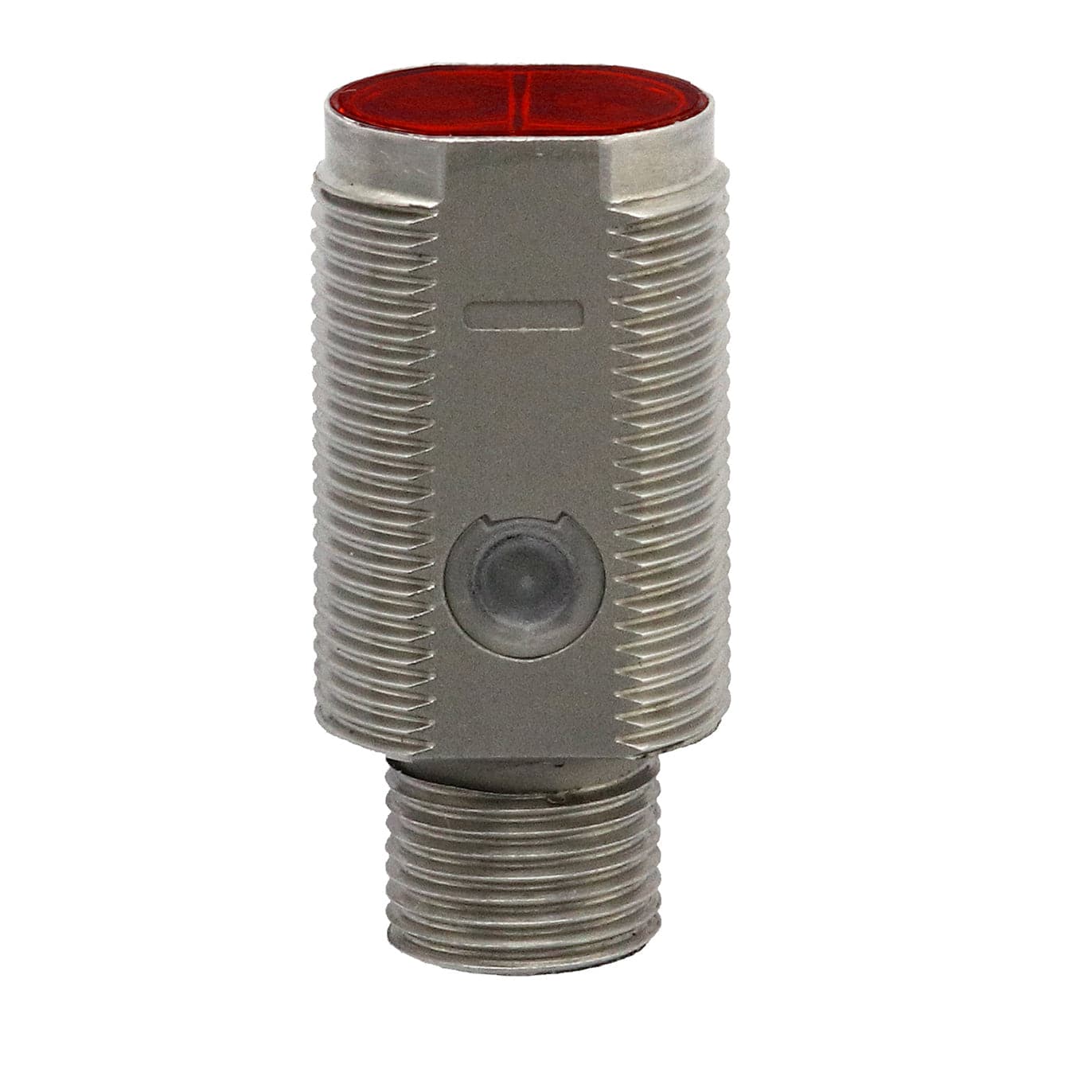

Standard Reflex M18 30...5500 mm Stainless steel V2A No LED, red 630 nm


Connection: M12 4-pin
Output: Light-on + Dark-on
Polarity: NPN
Sale price$60.35
Re-stocking soon

Estimated Delivery Time 2-3 weeks
