Short Specifications


Operating range 2000 mm
Switching frequency max. 1000 Hz
Supply voltage 10...36
Polarity NPN
Output Light-on
Sensitivity adjustment No
Connection PVC, 2 m, 3 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+55°C
Light source LED, red 660 nm
Interface Standard output
Operating principle Reflex
Sensing range max. 0


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

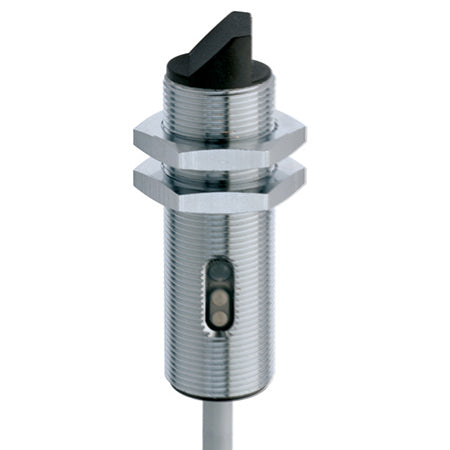

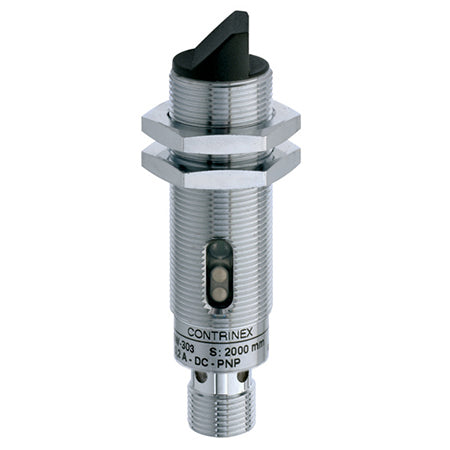

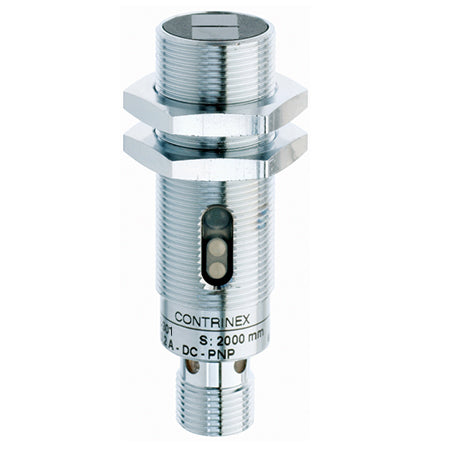

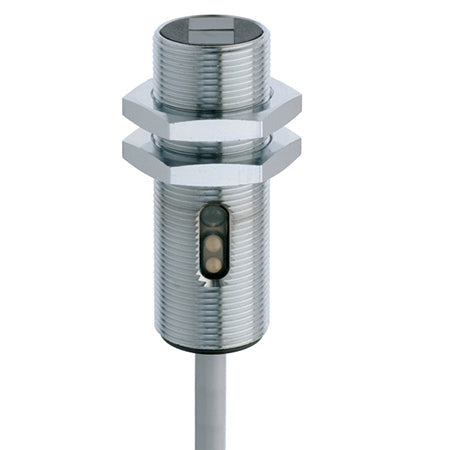

Standard Reflex M18 2000 mm Chrome plated brass LED, red 660 nm

SKU: LRK-1180-301

Connection: PVC, 2 m, 3 wire
Output: Light-on
Polarity and Mounting Type: NPN | Straight

Estimated Delivery Time 2-3 weeks
