Short Specifications

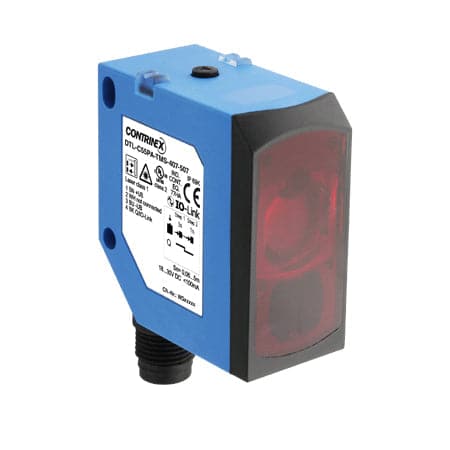

DTL-C55PA-TMS-407-507

Operating range 60...5000 mm
Switching frequency max. 500 Hz
Supply voltage 18...30
Polarity PNP/NPN auto-detect
Output Light-on/Dark-on/IO-Link
Sensitivity adjustment Teach button/input
Connection M12 5-pin
Housing size [mm] 50 x 50 (C55)
Enclosure rating IP 67 / IP 69K
Housing material ABS
Resolution 5 mm
Temperature range -40...+60°C
Light source Laser class 1, red 655 nm
Interface IO-Link
Operating principle Distance diffuse

Downloads

Type Format
Datasheet pdf
IODD zip pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

Standard Distance diffuse 50 x 50 (C55) 60...5000 mm ABS Teach button/input Laser class 1, red 655 nm

SKU: DTL-C55PA-TMS-407-507

Connection: M12 5-pin
Output: Light-on/Dark-on/IO-Link
Polarity: PNP/NPN auto-detect
Price:
Sale price$723.90
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
