Short Specifications


Operating range 600 mm
Switching frequency max. 1000 Hz
Supply voltage 10...36
Polarity PNP
Output Light-on
Sensitivity adjustment 3/4-turn pot.
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+55°C
Light source LED, red 660 nm
Interface Standard output
Operating principle Diffuse
Sensing range max. 0


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

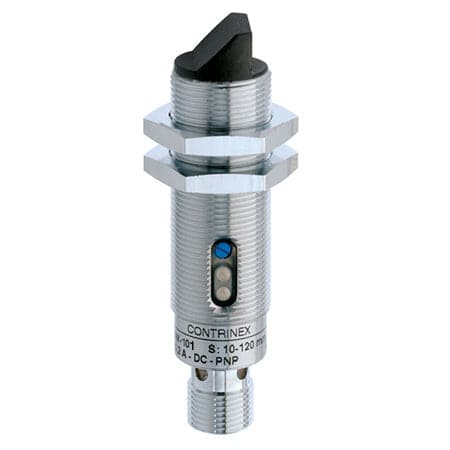

Standard Diffuse M18 600 mm Chrome plated brass 3/4 turn pot. LED, red 660 nm

SKU: LTS-1180W-303

Connection: M12 4-pin
Output: Light-on
Polarity and Mounting Type: PNP | Right-angle
Sale price$83.55
Re-stocking soon

Estimated Delivery Time 2-3 weeks
