Short Specifications

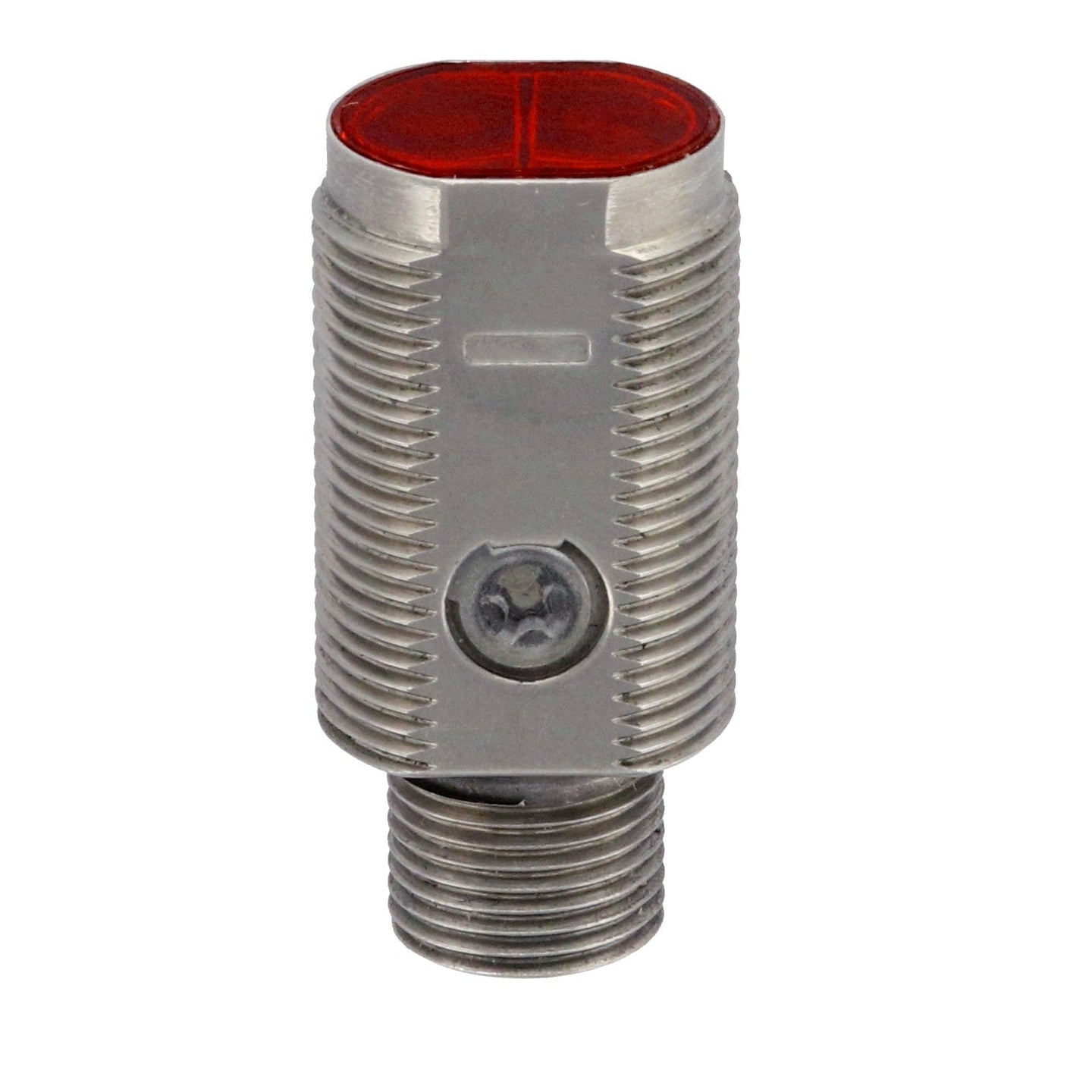

LTR-M18MA-PMS-101
| Operating range | 5...1000 mm |
| Switching frequency max. | 1500 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Sensitivity adjustment | 3/4-turn pot. |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustm | 30...1200 mm |
| Temperature range | -25...+65°C |
| Light source | LED, red 630 nm |
| Interface | Standard output |
| Operating principle | Diffuse |
| Sensing range max. | 3...1200 mm |
Downloads
| Type | Format |
| Datasheet |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
3D CAD Library
