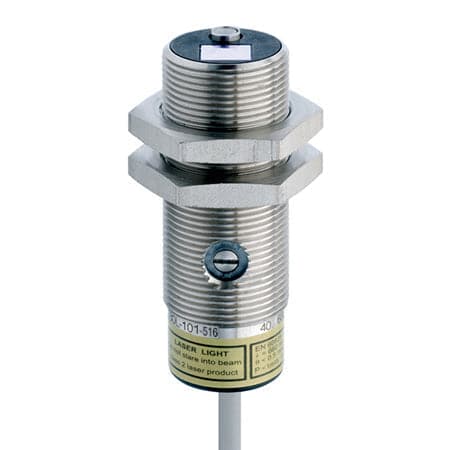

Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm
Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm

LTK-1180L-101-516

Operating range 40...250 mm
Switching frequency max. 5000 Hz
Supply voltage 10...36
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment 3-turn pot.
Connection PVC, 2 m, 4 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -10...+50°C
Light source Laser class 2, red 660 nm
Interface Standard output
Operating principle Diffuse
Sensing range max. 0
Type Format
Datasheet pdf
CE Certificate pdf
UKCA Certificate pdf
Photoelectrics Sensor Standard-Diffuse-M18-40250-mm-Stainless-steel-V2A-3-turn-pot-Laser-class-2-red-660-nm LTK-1180L-101-516

Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm

SKU: LTK-1180L-101-516

Connection: PVC, 2 m, 4 wire
Output: Light-on + Dark-on
Polarity and Mounting Type: NPN | Straight
PVC, 2 m, 4 wire ! Light-on + Dark-on ! NPN | Straight
PVC, 2 m, 4 wire ! Light-on + Dark-on ! PNP | Straight
PVC, 2 m, 4 wire ! Light-on + Excess gain ! PNP | Straight
M12 4-pin ! Light-on + Dark-on ! NPN | Straight
M12 4-pin ! Light-on + Dark-on ! PNP | Straight
M12 4-pin ! Light-on + Excess gain ! PNP | Straight
Regular price From $225.85
Re-stocking soon

Estimated Delivery Time 2-3 weeks

Secure Checkout

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Contact Icon

Need help? Click here to contact an expert

LTK-1180L-101-516

Operating range 40...250 mm
Switching frequency max. 5000 Hz
Supply voltage 10...36
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment 3-turn pot.
Connection PVC, 2 m, 4 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -10...+50°C
Light source Laser class 2, red 660 nm
Interface Standard output
Operating principle Diffuse
Sensing range max. 0
Type Format
Datasheet pdf
CE Certificate pdf
UKCA Certificate pdf
Photoelectrics Sensor Standard-Diffuse-M18-40250-mm-Stainless-steel-V2A-3-turn-pot-Laser-class-2-red-660-nm LTK-1180L-101-516
