Short Specifications


Operating range 6...650 mm
Switching frequency max. 1500 Hz
Supply voltage 10...30
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment 3/4-turn pot.
Connection PVC, 2 m, 4 wire + 0
Housing size [mm] M12
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+65°C
Light source LED, red 645 nm
Interface Standard output
Operating principle Diffuse
Sensing range max. 5...800 mm


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

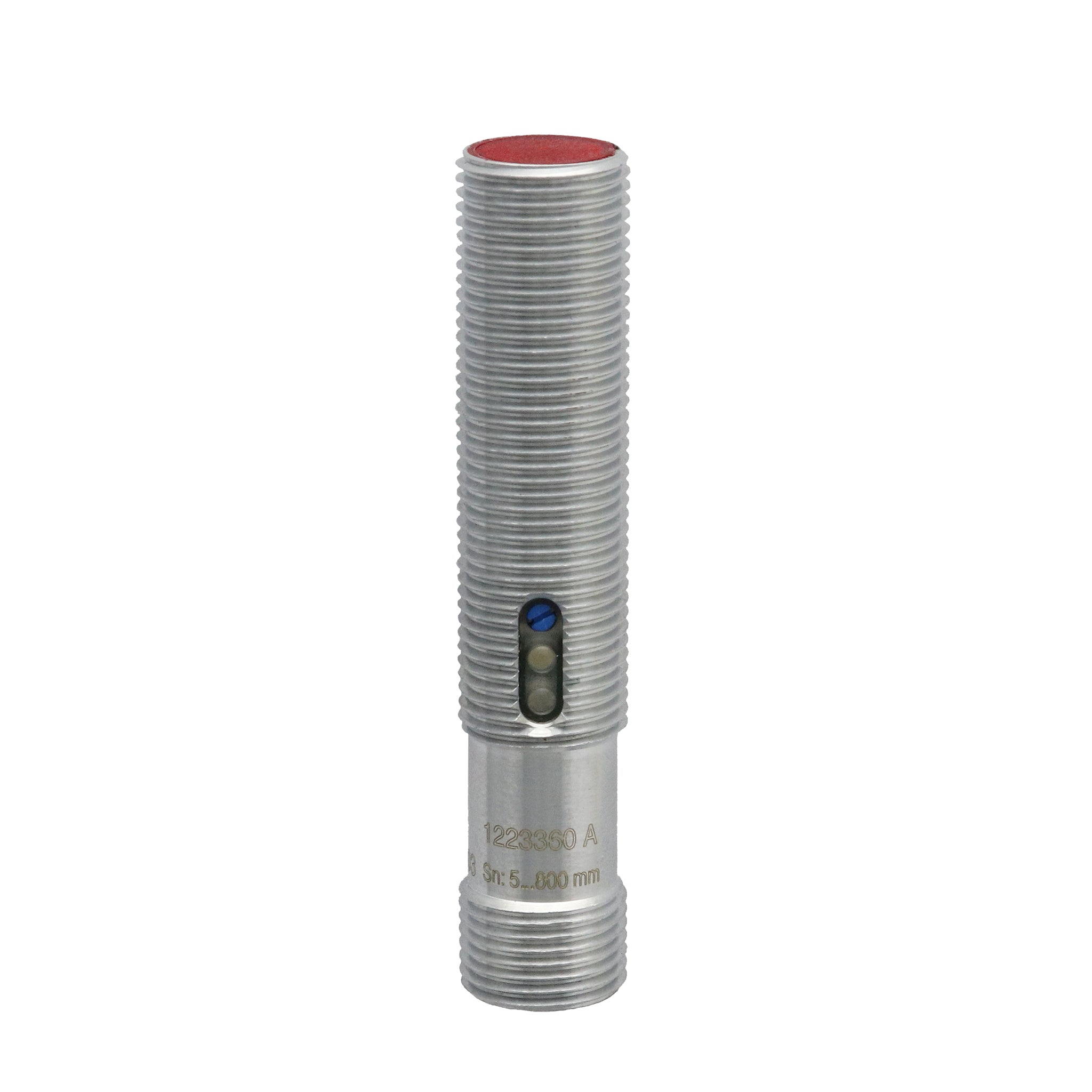

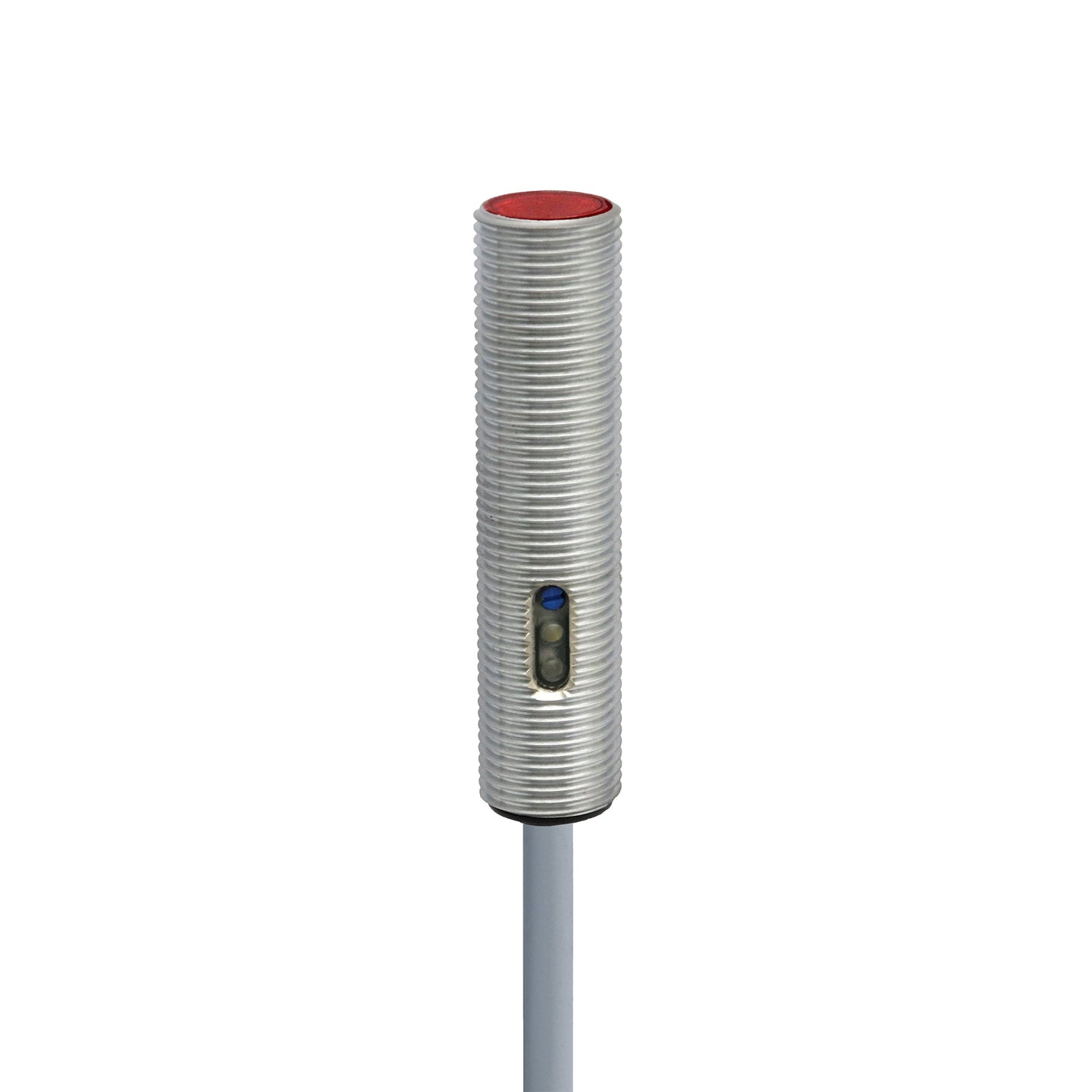

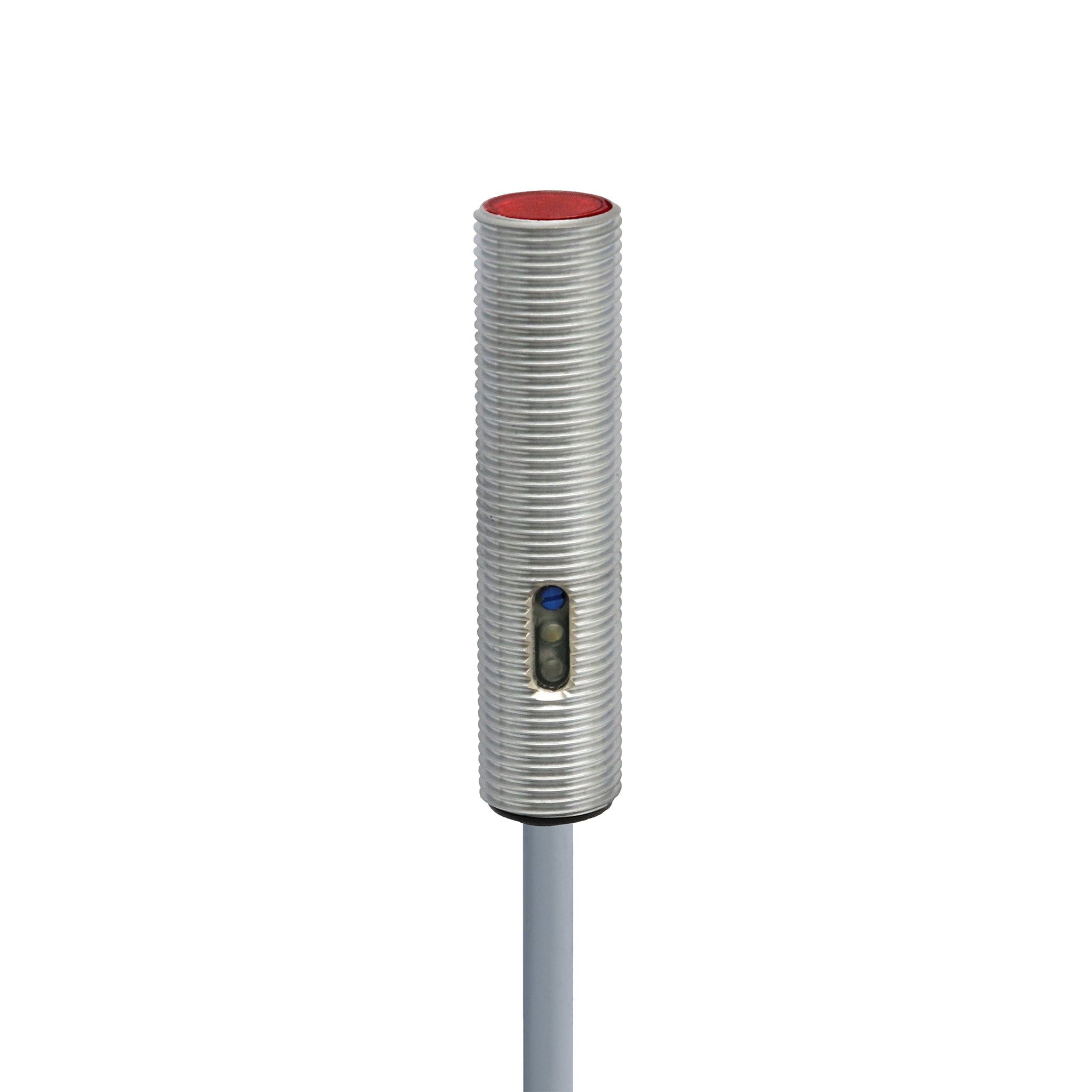

Standard Diffuse M12 6...650 mm Chrome plated brass 3/4 turn pot. LED, red 645 nm


Connection: PVC, 2 m, 4 wire + 0
Output: Light-on + Dark-on
Polarity: NPN
Sale price$61.26
In stock

Estimated Delivery Time 2-3 weeks
