LTK-3031-301
| Operating range | 600 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...36 |
| Polarity | NPN |
| Output | Light-on |
| Sensitivity adjustment | 12-turn pot. |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | 30 x 30 |
| Enclosure rating | IP 67 |
| Housing material | PBTP (Crastin) |
| Temperature range | -25...+55°C |
| Light source | LED, infrared 880 nm |
| Interface | Standard output |
| Operating principle | Diffuse |
| Sensing range max. | 0 |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|

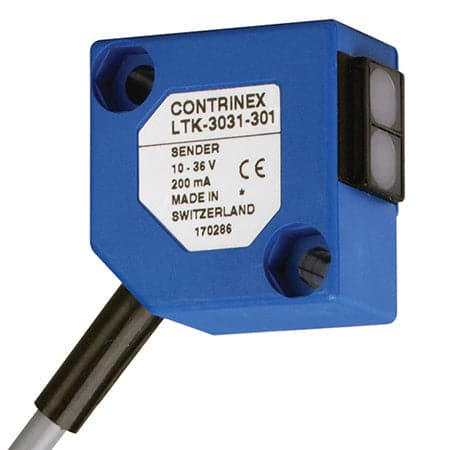

Photoelectrics Sensor Standard-Diffuse-30-30-600-mm-PBTP-Crastin-12-turn-pot-LED-infrared-880-nm LTK-3031-301
Standard Diffuse 30 x 30 600 mm PBTP (Crastin) 12 turn pot. LED, infrared 880 nm
SKU: LTK-3031-301
Regular price
From $74.30
Secure Checkout
Need help? Click here to contact an expert
LTK-3031-301
| Operating range | 600 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...36 |
| Polarity | NPN |
| Output | Light-on |
| Sensitivity adjustment | 12-turn pot. |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | 30 x 30 |
| Enclosure rating | IP 67 |
| Housing material | PBTP (Crastin) |
| Temperature range | -25...+55°C |
| Light source | LED, infrared 880 nm |
| Interface | Standard output |
| Operating principle | Diffuse |
| Sensing range max. | 0 |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
Photoelectrics Sensor Standard-Diffuse-30-30-600-mm-PBTP-Crastin-12-turn-pot-LED-infrared-880-nm LTK-3031-301
