Short Specifications


Operating range 5...1200 mm
Switching frequency max. 1500 Hz
Supply voltage 10...30
Polarity PNP
Output Light-on/IO-Link
Sensitivity adjustment No
Connection PVC, 2 m, 3 wire
Housing size [mm] 20 x 30 (C23)
Enclosure rating IP 67
Housing material ABS
Sensitivity Range Adjustm 30...1500 mm
Temperature range -25...+65°C
Light source LED, red 630 nm
Interface IO-Link
Operating principle Diffuse
Sensing range max. 3...1500 mm


Type Format
Datasheet pdf
IODD zip pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

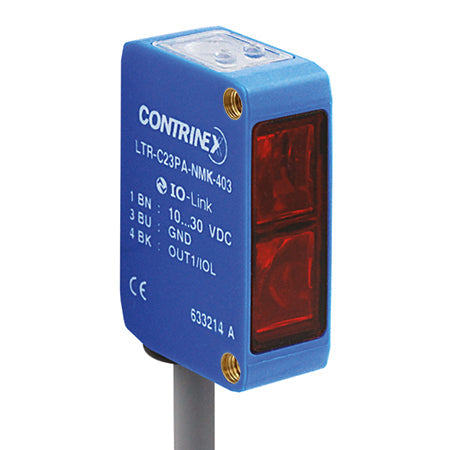

Standard Diffuse 20 x 30 (C23) 5...1200 mm ABS LED, red 630 nm


Connection: PVC, 2 m, 3 wire
Output: Light-on/IO-Link
Polarity: PNP

Estimated Delivery Time 2-3 weeks
