Short Specifications


Operating range 0...2000 mm
Switching frequency max. 2 Hz
Supply voltage 10...30
Product Range Standard body
Polarity NPN
Output NO (default)/NC
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material PBTP
Temperature range -20...+70°C
Interface Standard output
Operating principle Reflex


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

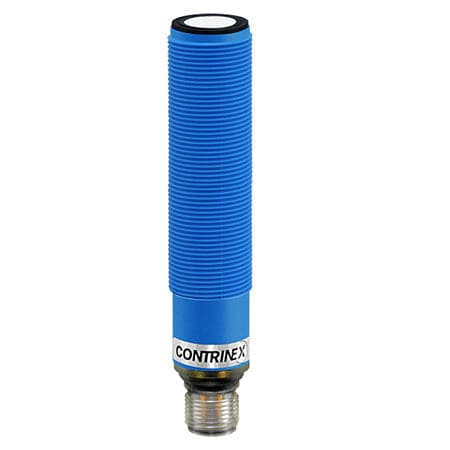

Standard body Reflex M18 PBTP 0...2000 mm

Connection: M12 4-pin
Output: NO (default)/NC
Polarity: NPN
Sale price$185.10
Re-stocking soon

Estimated Delivery Time 2-3 weeks
