UST-M30PS-TMS-403
| Operating range | 200...2500 mm |
| Switching frequency max. | 2 Hz |
| Supply voltage | 12...30 |
| Product Range | Standard body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | PBTP |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Diffuse |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|

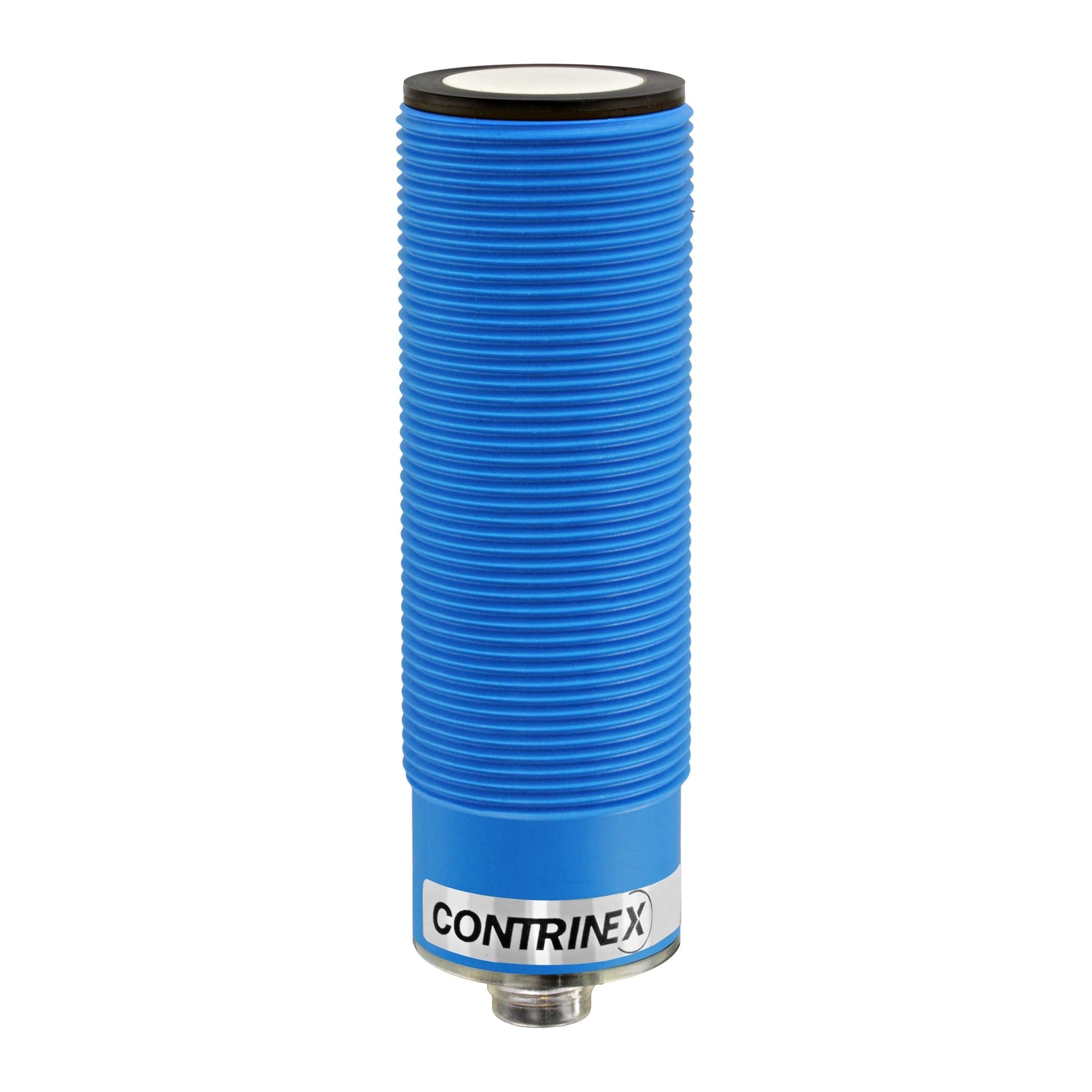

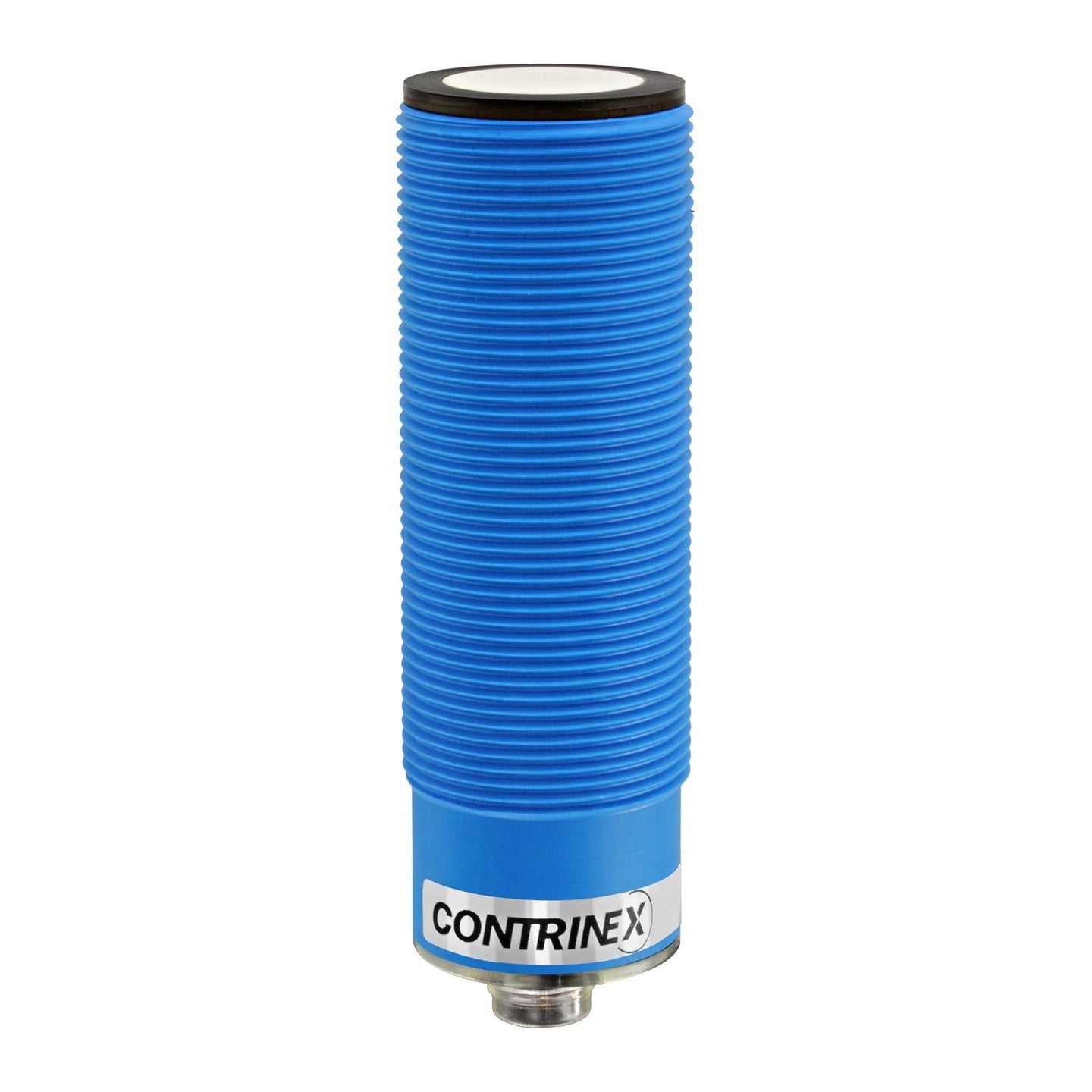

Ultrasonic Sensor Standard-body-Diffuse-M30-PBTP-2002500-mm UST-M30PS-TMS-403
Standard body Diffuse M30 PBTP 200...2500 mm
SKU: UST-M30PS-TMS-403
Regular price
From $249.55
Secure Checkout
Need help? Click here to contact an expert
UST-M30PS-TMS-403
| Operating range | 200...2500 mm |
| Switching frequency max. | 2 Hz |
| Supply voltage | 12...30 |
| Product Range | Standard body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | PBTP |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Diffuse |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|
Ultrasonic Sensor Standard-body-Diffuse-M30-PBTP-2002500-mm UST-M30PS-TMS-403
