Short Specifications


Operating range 100...900 mm
Switching frequency max. 4 Hz
Supply voltage 10...30
Product Range Standard body
Polarity NPN
Output NO (default)/NC + NO (default)/NC
Connection M12 4-pin
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -20...+70°C
Interface Standard output
Operating principle Diffuse


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

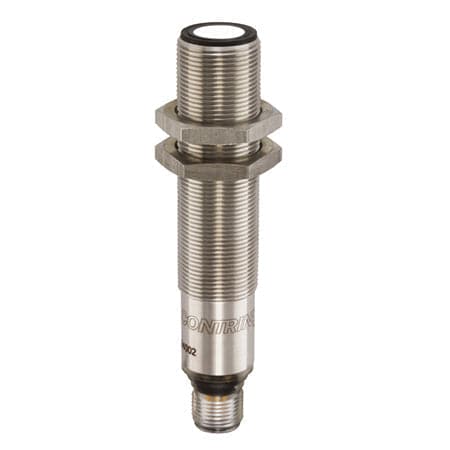

Standard body Diffuse M18 Stainless steel V2A 100...900 mm

Connection: M12 4-pin
Output: NO (default)/NC + NO (default)/NC
Polarity: NPN
Sale price$213.40
Re-stocking soon

Estimated Delivery Time 2-3 weeks
