Short Specifications

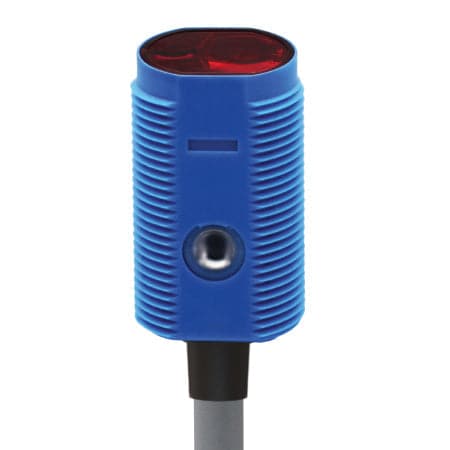

LHR-M18PA-TMK-101

Operating range 15...210 mm
Switching frequency max. 700 Hz
Supply voltage 10...30
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment Teach button
Connection PVC, 2 m, 4 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material ABS
Sensitivity Range Adjustm 30...250 mm
Temperature range -25...+65°C
Sensor Height 33 mm
Light source Pinpoint LED, red 640 nm
Interface Standard output
Operating principle Background suppression
Sensing range max. 10...250 mm

Downloads

Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

Standard Background suppression M18 15...210 mm ABS Teach button Pinpoint LED, red 640 nm

SKU: LHR-M18PA-TMK-101
Connection: PVC, 2 m, 4 wire
Output: Light-on + Dark-on
Polarity: NPN
Price:
$66.30
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
