Short Specifications

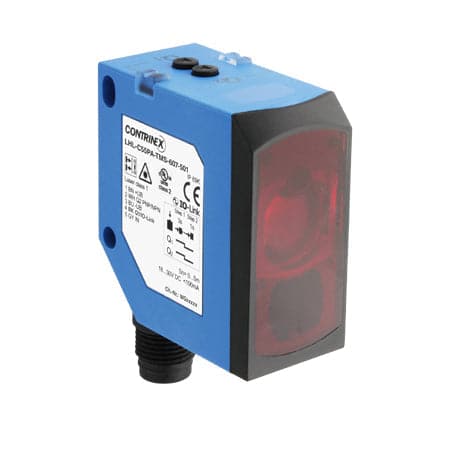

LHL-C55PA-TMS-607-501
| Operating range | 0...5000 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP/NPN auto-detect |
| Output | Light-on/Dark-on/IO-Link + Light-on/Dark-on + Teach input |
| Sensitivity adjustment | Teach button/input |
| Connection | M12 5-pin |
| Housing size [mm] | 50 x 50 (C55) |
| Enclosure rating | IP 67 / IP 69K |
| Housing material | ABS |
| Resolution | 5 mm |
| Temperature range | -40...+60°C |
| Light source | Laser class 1, red 650 nm |
| Interface | IO-Link |
| Operating principle | Background suppression |
Downloads
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
3D CAD Library
Estimated Delivery Time 2-3 weeks
