Short Specifications
Preliminary

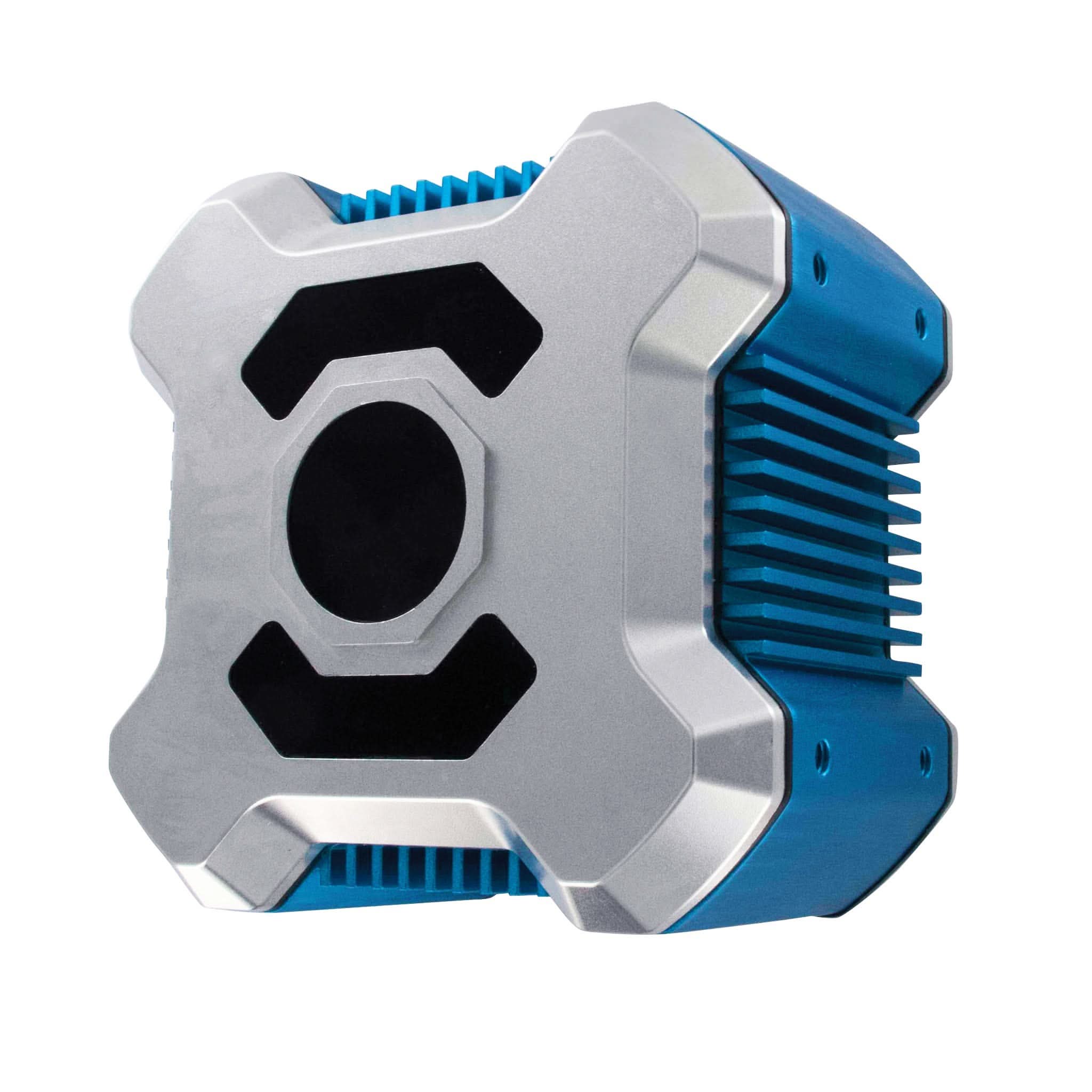

CAM-3TIQC-C99S-SN-A
| Vision technologie | Time of Flight (ToF) Continious Modulation |
| Light Source | Infrared 850nm, 4 VCSEL |
| Resolution | QVGA (320 x 240) |
| Field of view (FoV) | 46° |
| Operating range | <300 mm < 3’500mm |
| Frame rate | up to 40 FPS |
| Max image treatement frequency | up to 25 Hz |
| Housing | Rectangular |
| Dimensions | 92mm x 92mm x 68mm |
| Connector 1 | S12 5 PIN SIO / IO-LINK |
| Number of outputs | 2, PNP/NPN Configurable |
| Trigger/ Input | Trigger 24VDC Rising edge |
| Connector 2 | Not existing |
| Ethernet Protocole | - |
| Hardware version | A |
| Operating voltage | 24 VDC |
| Power Consumption | 8 W typical, 20 W Peak at startup |
Downloads
| Type | Format |
| Smart Camera 3D Brochure |
|
