USR-M18MC-WSS-303
| Operating range | 0...300 mm |
| Switching frequency max. | 8 Hz |
| Supply voltage | 10...30 |
| Product Range | Short body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Reflex |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|

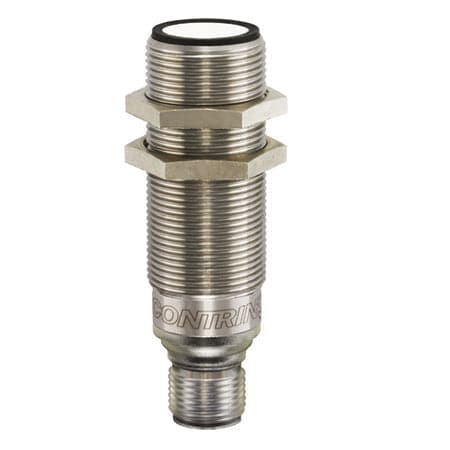

Ultrasonic Sensor Short-body-Reflex-M18-Stainless-steel-V2A-0300-mm USR-M18MC-WSS-303
Short body Reflex M18 Stainless steel V2A 0...300 mm
SKU: USR-M18MC-WSS-303
Regular price
$190.45
