USR-M18PC-WSS-303
| Operating range | 0...300 mm |
| Switching frequency max. | 8 Hz |
| Supply voltage | 10...30 |
| Product Range | Short body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | PBTP |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Reflex |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|

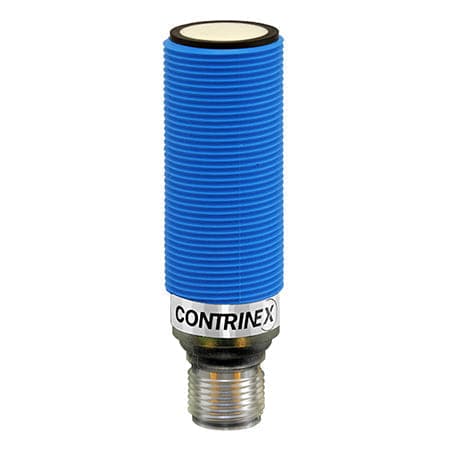

Ultrasonic Sensor Short-body-Reflex-M18-PBTP-0300-mm USR-M18PC-WSS-303
Short body Reflex M18 PBTP 0...300 mm
SKU: USR-M18PC-WSS-303
Regular price
$128.60
