UST-M18MC-WMS-303
| Operating range | 80...1200 mm |
| Switching frequency max. | 5 Hz |
| Supply voltage | 10...30 |
| Product Range | Short body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Diffuse |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|

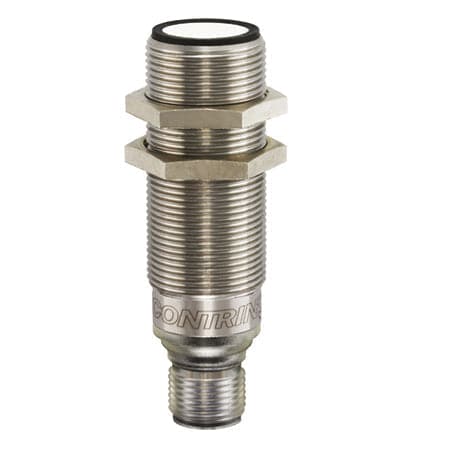

Ultrasonic Sensor Short-body-Diffuse-M18-Stainless-steel-V2A-801200-mm UST-M18MC-WMS-303
Short body Diffuse M18 Stainless steel V2A 80...1200 mm
SKU: UST-M18MC-WMS-303
Regular price
From $231.85
Secure Checkout
Need help? Click here to contact an expert
UST-M18MC-WMS-303
| Operating range | 80...1200 mm |
| Switching frequency max. | 5 Hz |
| Supply voltage | 10...30 |
| Product Range | Short body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Diffuse |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|
Ultrasonic Sensor Short-body-Diffuse-M18-Stainless-steel-V2A-801200-mm UST-M18MC-WMS-303
