UST-M18PC-WSS-303
| Operating range | 40...300 mm |
| Switching frequency max. | 8 Hz |
| Supply voltage | 10...30 |
| Product Range | Short body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | PBTP |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Diffuse |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|

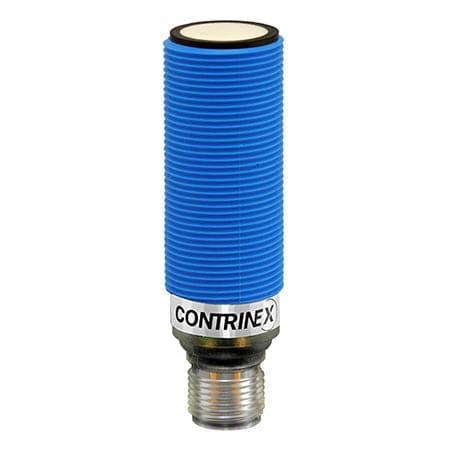

Ultrasonic Sensor Short-body-Diffuse-M18-PBTP-40300-mm UST-M18PC-WSS-303
Short body Diffuse M18 PBTP 40...300 mm
SKU: UST-M18PC-WSS-303
Regular price
$128.60
Secure Checkout
Need help? Click here to contact an expert
UST-M18PC-WSS-303
| Operating range | 40...300 mm |
| Switching frequency max. | 8 Hz |
| Supply voltage | 10...30 |
| Product Range | Short body |
| Polarity | PNP |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | PBTP |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Diffuse |
| Type | Format |
| Datasheet |
|
| Operating Manual |
|
| CE Certificate |
|
| UKCA Certificate |
|
Ultrasonic Sensor Short-body-Diffuse-M18-PBTP-40300-mm UST-M18PC-WSS-303
