Short Specifications


Operating range 0...500 mm
Switching frequency max. 1000 Hz
Supply voltage 10...30
Polarity NPN
Output Dark-on
Sensitivity adjustment No
Connection PUR, 2 m, 3 wire
Housing size [mm] Ø 4
Enclosure rating IP 67
Housing material Stainless-steel V2A
Sensitivity Range Adjustm 10...600 mm
Temperature range -25...+65°C
Light source LED, red 680 nm
Interface Standard output
Operating principle Through-beam
Sensing range max. 0...600 mm


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

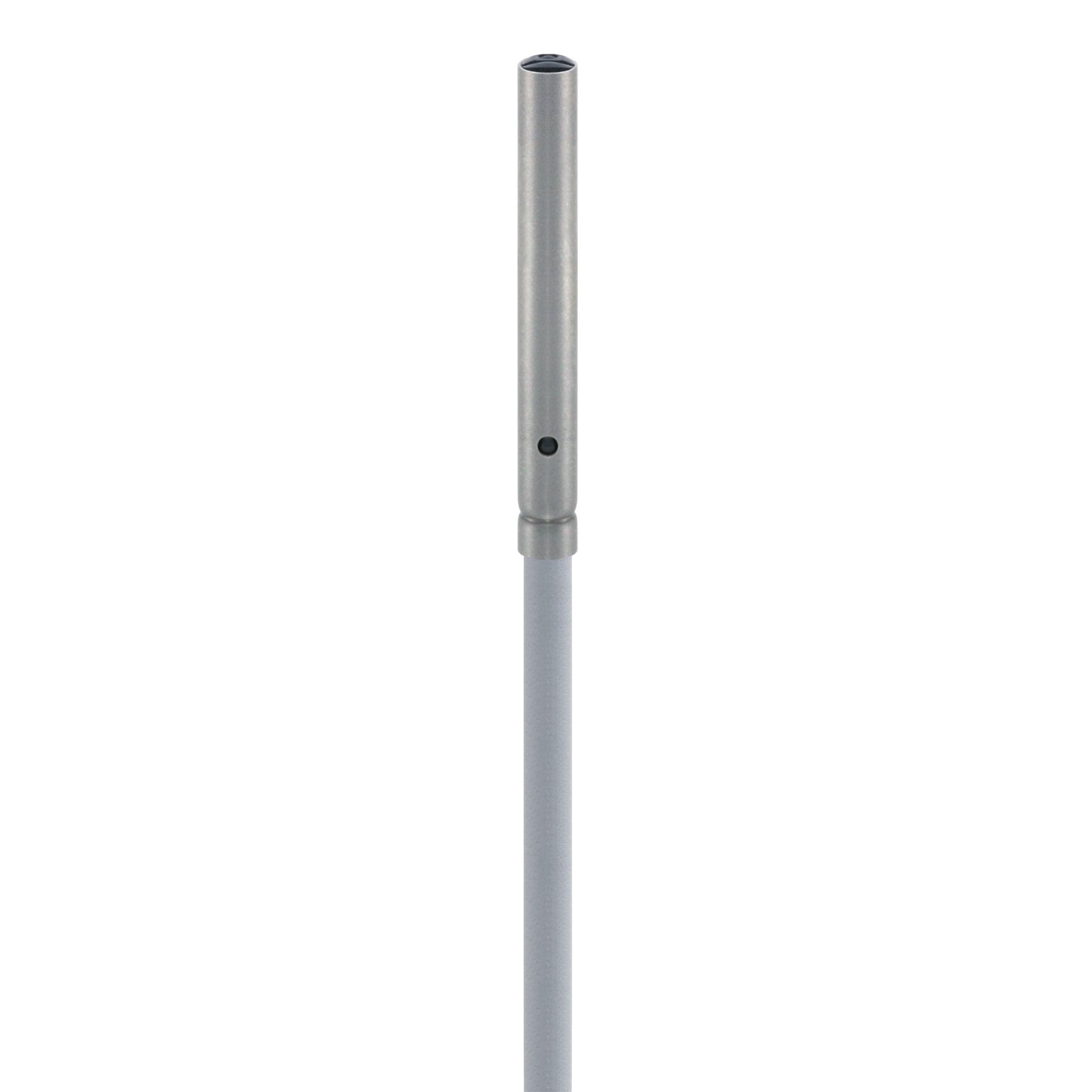

Miniature Through beam Ø 4 0...500 mm Stainless steel V2A No LED, red 680 nm


Connection: PUR, 2 m, 3 wire
Output: Dark-on
Polarity: NPN
Sale price$77.15
Re-stocking soon

Estimated Delivery Time 2-3 weeks
