DW-AD-713-04
| Operating range | 3 mm |
| Switching frequency max. | 1200 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 150 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | Ø 4 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 30 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|

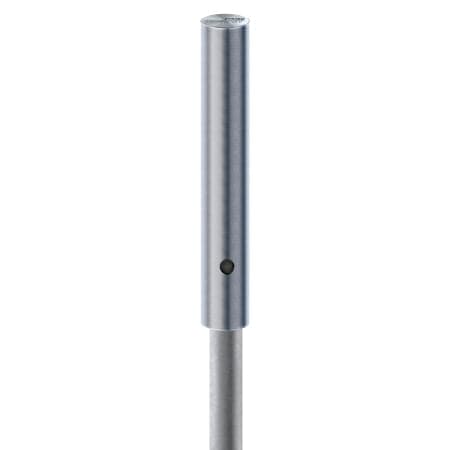

Inductives Sensor Miniature-Full-Inox-Series-700-04-Non-embeddable-3-mm DW-AD-713-04
Miniature Full Inox Series 700 Ø 4 Non embeddable 3 mm
SKU: DW-AD-713-04
Regular price
From $170.95
Secure Checkout
Need help? Click here to contact an expert
