Short Specifications


Operating range 20 mm
Switching frequency max. 250 Hz
Supply voltage 10...30
Polarity PNP
Output Light-on
Sensitivity adjustment No
Connection PVC, 2 m, 3 wire + 0
Housing size [mm] M5
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range 0...+55°C
Light source LED, infrared 880 nm
Interface Standard output
Operating principle Diffuse
Sensing range max. 0


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

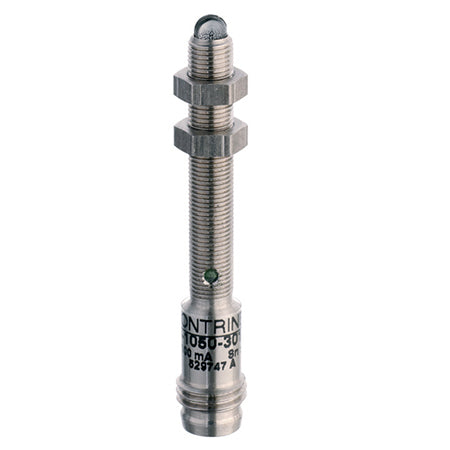

Miniature Diffuse M5 20 mm Stainless steel V2A LED, infrared 880 nm

SKU: LTK-1050-303-506

Connection: PVC, 2 m, 3 wire + 0
Output: Light-on
Polarity: PNP

Estimated Delivery Time 2-3 weeks
