Short Specifications


Operating range 0...100 mm
Switching frequency max. 1000 Hz
Supply voltage 10...30
Polarity PNP
Output Light-on + Teach input
Sensitivity adjustment Teach-in
Connection PUR, 2 m, 4 wire
Housing size [mm] M5
Enclosure rating IP 67
Housing material Stainless-steel V2A
Sensitivity Range Adjustm 20...120 mm
Temperature range -25...+65°C
Light source LED, red 680 nm
Interface IO-Link
Operating principle Diffuse
Sensing range max. 0...120 mm


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

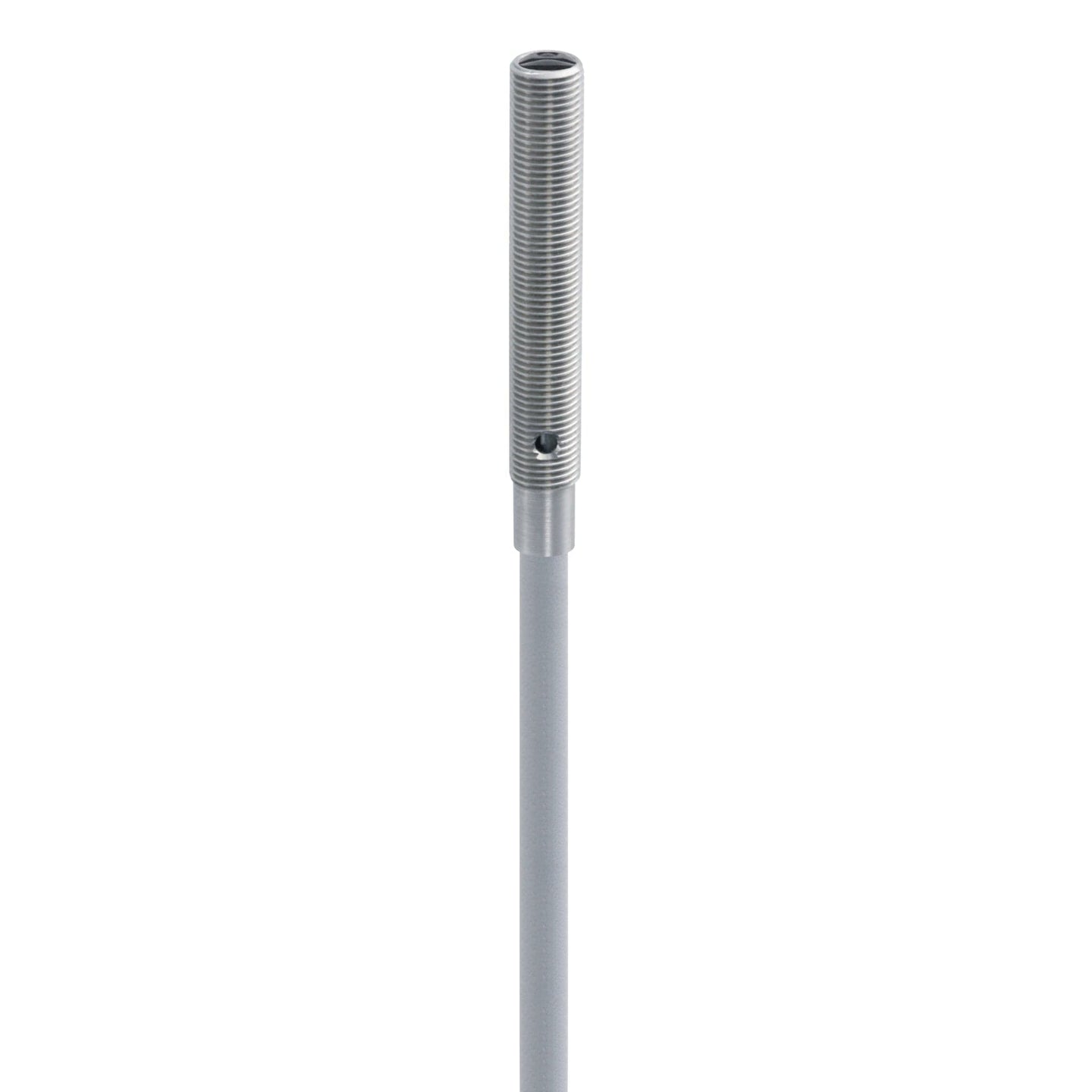

Miniature Diffuse M5 0...100 mm Stainless steel V2A Teach in LED, red 680 nm


Connection: PUR, 2 m, 4 wire
Output: Light-on + Teach input
Polarity: PNP
Sale price$120.30
Re-stocking soon

Estimated Delivery Time 2-3 weeks
