Short Specifications

LTR-D04MA-WXK-301

Operating range 0...100 mm
Switching frequency max. 1000 Hz
Supply voltage 10...30
Polarity NPN
Output Light-on + Teach input
Sensitivity adjustment No
Connection PUR, 2 m, 4 wire
Housing size [mm] Ø 4
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -25...+65°C
Light source LED, red 680 nm
Interface Standard output
Operating principle Diffuse
Sensing range max. 0...120 mm

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

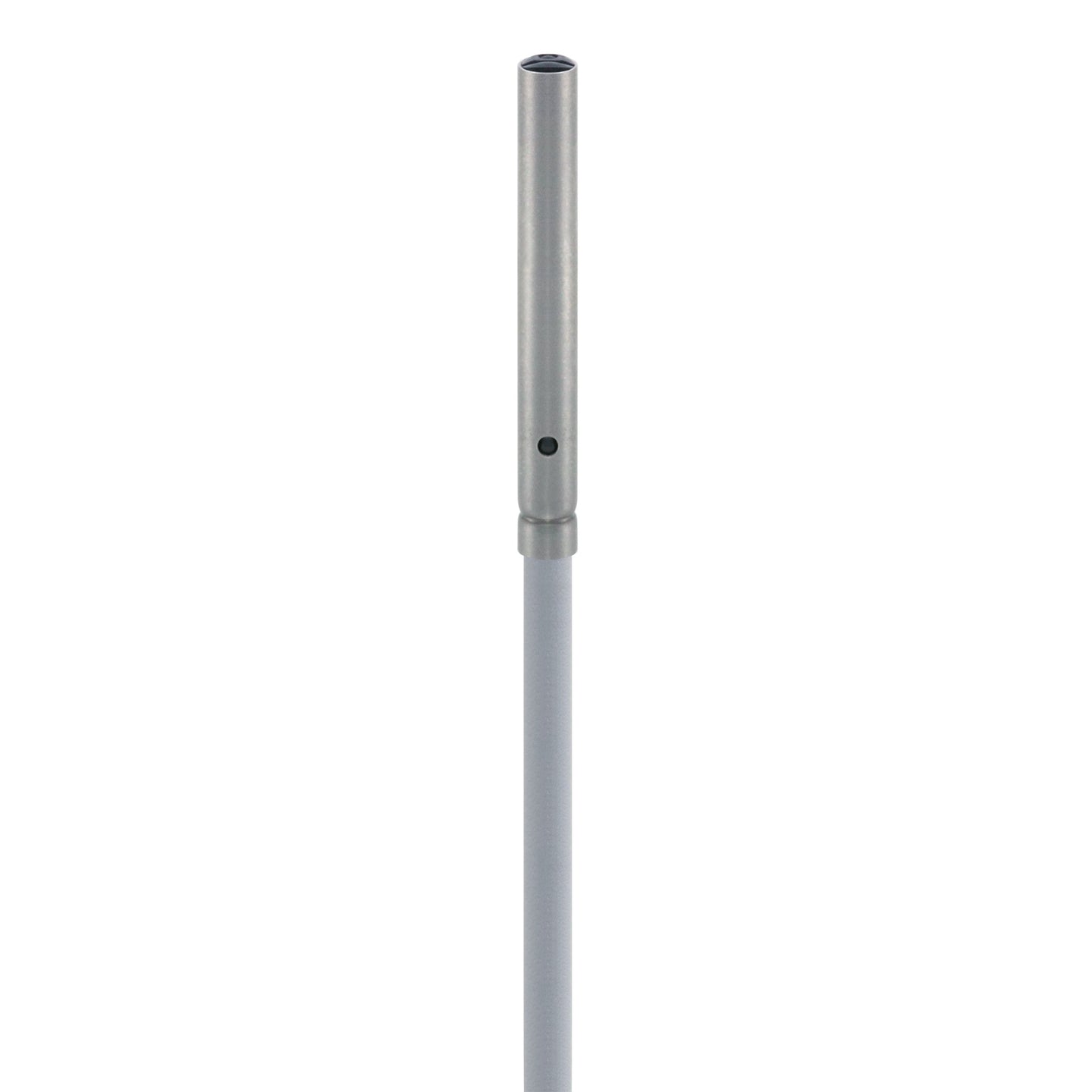

Miniature Diffuse Ø 4 0...100 mm Stainless steel V2A LED, red 680 nm

SKU: LTR-D04MA-WXK-301

Connection: PUR, 2 m, 4 wire
Output: Light-on + Teach input
Polarity: NPN

Estimated Delivery Time 2-3 weeks
