Short Specifications


Operating range 20 mm
Switching frequency max. 125 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 40 bar
Polarity PNP
Output Normally Open (NO)
Connection PUR, 2 m, 3 wire
Housing size [mm] M30
Enclosure rating IP 68 / IP 69K
Housing material Stainless-steel V4A
Temperature range -25...+85°C
Sensor Height 70.2 mm
Mounting Embeddable
Interface IO-Link


Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf
DNV certificate pdf

3D CAD Library

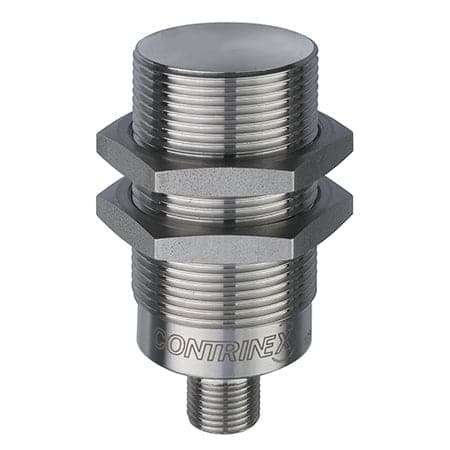

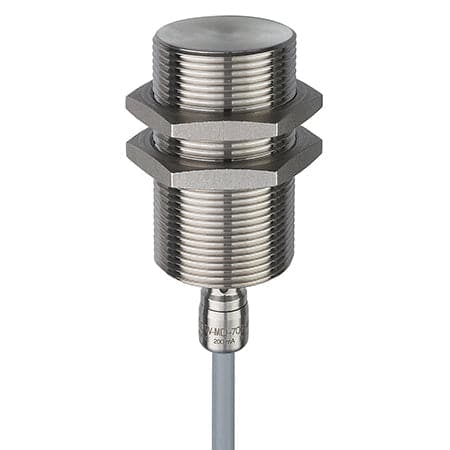

Maritime Full Inox Series 700 M30 Embeddable 20 mm

SKU: DW-MD-703-M30

Connection: PUR, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)
Sensor length: 70.2 mm
Sale price$239.25
Re-stocking soon

Estimated Delivery Time 2-3 weeks
