Short Specifications

DW-AD-603-M10E-1304

Operating range 0.6 mm
Switching frequency max. 2500 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 50 Bar
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection PUR, 0.30 m, 3 wire
Housing size [mm] M10
Enclosure rating IP 68
Housing material Stainless-steel V2A
Temperature range -25...+70°C
Sensor Height 35 mm
Mounting Embeddable
Interface IO-Link

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
DNV certificate pdf

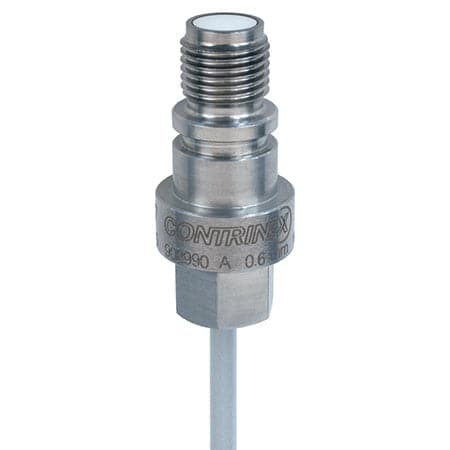

Maritime Classics Series 600 M10 Embeddable 0.6 mm


Connection: PUR, 0.30 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length: 35 mm
Price:
Sale price$378.40
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
