Short Specifications


Supply voltage 24 ± 20 %
Polarity Analog
Output 4...20 mA + 0...10 V
Sensitivity adjustment No
Connection PUR, 0.3 m, 4 wire
Housing size [mm] 40 x 20.5
Enclosure rating IP 65
Housing material Aluminium
Resolution 6 mm
Temperature range -5...+50°C
Sensor Height 260 mm
Light source LED, infrared 880 nm
Operating principle Measurement grid
Sensing range max. 300...4000 mm


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

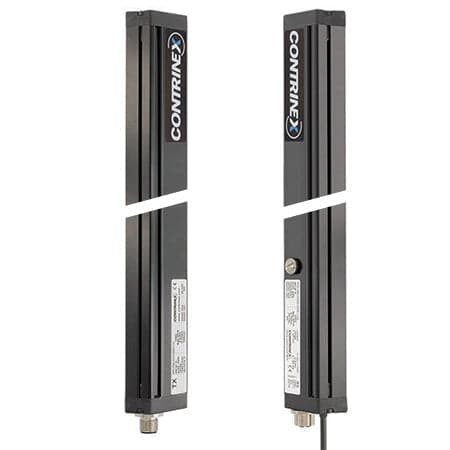

Light grid Measurement grid 40 x 20.5 Aluminium No LED, infrared 880 nm

SKU: MGI-05A-0232-NMS-149

Light grid length: 260 mm
Resolution: 6 mm
Sale price$1,234.43
Re-stocking soon

Estimated Delivery Time 2-3 weeks
