Short Specifications


Supply voltage 24 ± 20 %
Polarity PUSH-PULL
Output Light-on + Dark-on
Sensitivity adjustment No
Housing size [mm] 40 x 20.5
Enclosure rating IP 65
Housing material Aluminium
Resolution 4 mm
Temperature range -5...+50°C
Sensor Height 100 mm
Light source LED, infrared 880 nm
Interface Standard output
Operating principle Detection grid
Sensing range max. 80...800 mm


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

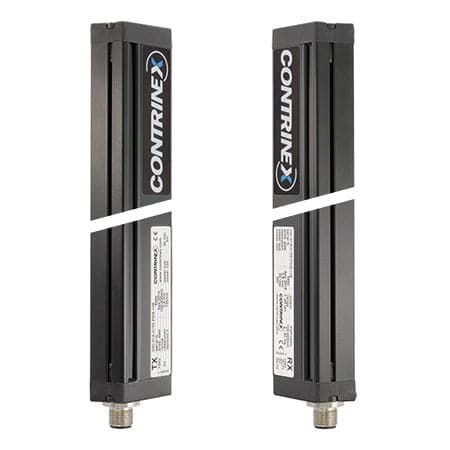

Light grid Detection grid 40 x 20.5 Aluminium No LED, infrared 880 nm

Light grid length: 100 mm
Resolution: 4 mm
Sale price$491.65

Estimated Delivery Time 2-3 weeks

• For further information, please call +1 972-685-3010
• Para más información, llame al +52 55 56 110 110
• Para maiores informações, favor ligar para +55 19 3886 667
• To contact us by e-mail, please click here
