Short Specifications

YBB-30K4-0250-G012

Operating range 0.25...12 m
Sender wavelength IR 880 nm
Protective height 279 mm
Supply voltage 24
Polarity PNP
Safety Level Cat. 4, PL e, Type 4
Connection M12 5-pin
Housing size [mm] 42 x 48 (standard)
Enclosure rating IP 65 / IP 67
Safety Type Kit
Response time 5.2 ms
Resolution 30 mm (hand)
Temperature range -35...+60°C
Sensor Height 380 mm
Product Range Light curtain basic standard
Beam gap 16 mm

Downloads

Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

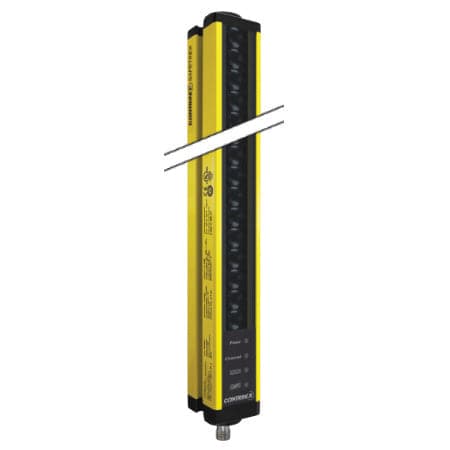

Light curtain basic standard Type 4 Hand 30 mm (hand) Cat. 4, PL e, Type 4

SKU: YBB-30K4-0250-G012

Housing size [mm]: 42 x 48 (standard)
Protective height: 279 mm
Product type: Kit
Price:
Sale price$711.40
Stock:
In stock

Estimated Delivery Time 2-3 weeks
