Short Specifications


Operating range 1...50 m
Sender wavelength IR 880 nm
Protective height 1532 mm
Supply voltage 24
Polarity PNP
Safety Level Cat. 4, PL e, Type 4
Housing size [mm] 42 x 48 (standard)
Enclosure rating IP 65 / IP 67
Safety Type Kit
Response time 6.7 ms
Resolution 6-beams (access)
Temperature range -35...+60°C
Sensor Height 1670 mm
Product Range Light curtain basic standard
Beam gap 300 mm


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

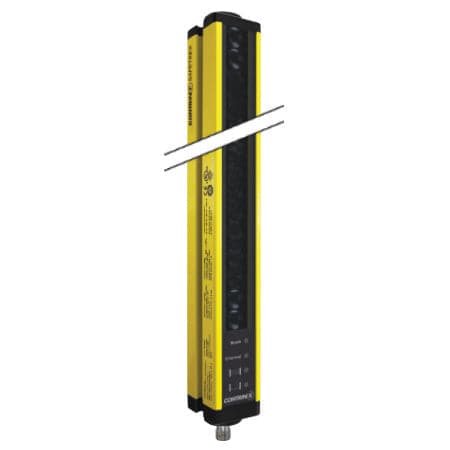

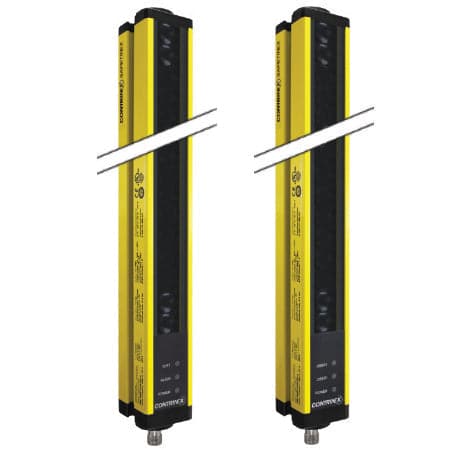

Light curtain basic standard Type 4 Access Control 6 beams (access) Cat. 4, PL e, Type 4

SKU: YCA-50K4-6300-G012

Housing size [mm]: 42 x 48 (standard)
Protective height: 1532 mm
Product type: Kit
Sale price$1,644.90
Re-stocking soon

Estimated Delivery Time 2-3 weeks
