Short Specifications


Operating range 0.25...8 m
Sender wavelength IR 850 nm
Protective height 170 mm
Supply voltage 24
Polarity PNP
Safety Level Cat. 2, PL c, Type 2
Connection PUR, 0.3 m, 5 / 5 wire + M12 5-pin
Housing size [mm] 26 x 26 (slim)
Enclosure rating IP 65
Safety Type Kit
Response time 6 ms
Resolution 30 mm (hand)
Temperature range 0...+55°C
Sensor Height 170 mm
Product Range Light curtain basic slim
Beam gap 20 mm


Type Format
Datasheet pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

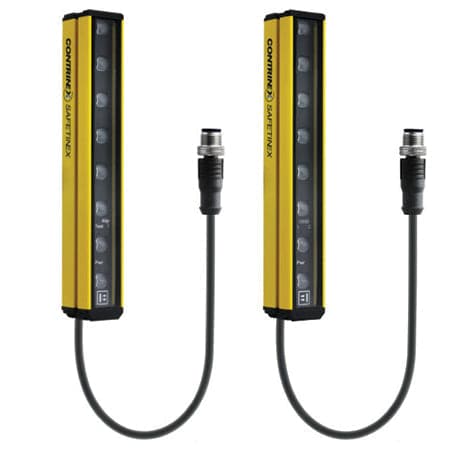

Light curtain basic slim Type 2 Hand 30 mm (hand) Cat. 2, PL c, Type 2

SKU: YBBS-30K2-0170-P012

Housing size [mm]: 26 x 26 (slim)
Protective height: 170 mm
Product type: Kit
Sale price$647.66
Re-stocking soon

Estimated Delivery Time 2-3 weeks
