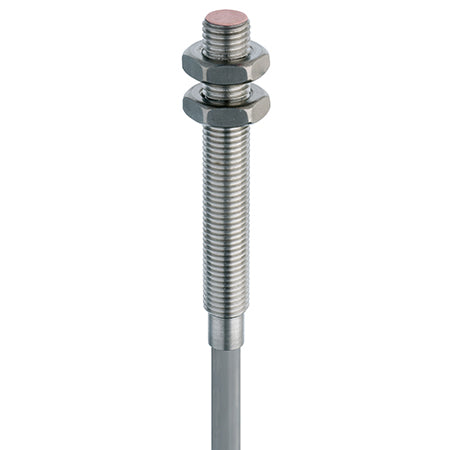

Inductives Sensor High-temperature-Classics-Series-600-M8-Embeddable-2-mm-0-140°C DW-HD-621-M8-100
High temperature Classics Series 600 M8 Embeddable 2 mm 0...+140°C
SKU: DW-HD-621-M8-100
Regular price
$270.65
Secure Checkout
Need help? Click here to contact an expert
DW-HD-621-M8-100
| Operating range | 2 mm |
| Switching frequency max. | 600 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | Silicone, 2 m, 3 wire |
| Housing size [mm] | M8 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | 0...+140°C |
| Sensor Height | 60 mm |
| Mounting | Embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
