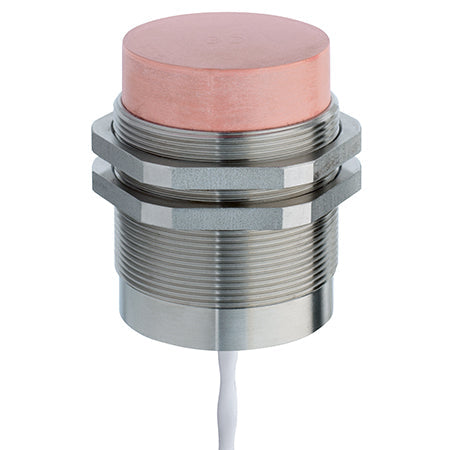

High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C
High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C

DW-HD-611-M50-411

Operating range 25 mm
Switching frequency max. 150 Hz
Supply voltage 10...30
Polarity NPN
Output Normally Open (NO)
Connection PTFE / PUR, 3 m / 2 m, 3 wire
Housing size [mm] M50
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range 0...+230°C
Sensor Height 68 mm
Mounting Non-embeddable
Interface Standard output
Type Format
Datasheet pdf
CE Certificate pdf
UKCA Certificate pdf
Inductives Sensor High-temperature-Classics-Series-600-M50-Non-embeddable-25-mm-0-230°C DW-HD-611-M50-411

High temperature Classics Series 600 M50 Non embeddable 25 mm 0...+230°C

SKU: DW-HD-611-M50-411

Connection: PTFE / PUR, 3 m / 2 m, 3 wire
Polarity and Output: NPN|Normally Open (NO)
Sensor length: 68 mm
PTFE / PUR, 3 m / 2 m, 3 wire ! NPN|Normally Open (NO) ! 68 mm
PTFE / PUR, 3 m / 2 m, 3 wire ! PNP|Normally Open (NO) ! 68 mm
Regular price From $807.20
Re-stocking soon

Estimated Delivery Time 2-3 weeks
