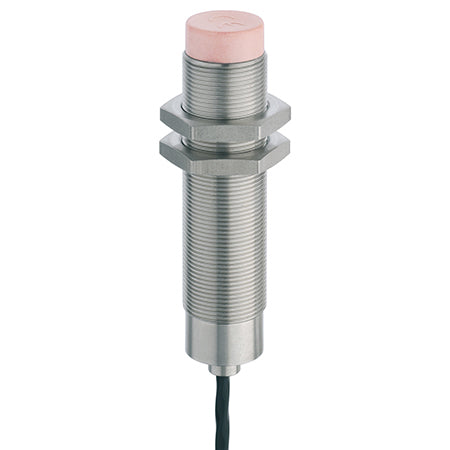

High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C
High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C

DW-HD-611-M18-310

Operating range 8 mm
Switching frequency max. 400 Hz
Supply voltage 10...30
Polarity NPN
Output Normally Open (NO)
Connection PTFE, 2 m, 3 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range 0...+180°C
Sensor Height 82 mm
Mounting Non-embeddable
Interface Standard output
Type Format
Datasheet pdf
CE Certificate pdf
UKCA Certificate pdf
Inductives Sensor High-temperature-Classics-Series-600-M18-Non-embeddable-8-mm-0-180°C DW-HD-611-M18-310

High temperature Classics Series 600 M18 Non embeddable 8 mm 0...+180°C

SKU: DW-HD-611-M18-310

Connection: PTFE, 2 m, 3 wire
Polarity and Output: NPN|Normally Open (NO)
Sensor length: 82 mm
PTFE, 2 m, 3 wire ! NPN|Normally Open (NO) ! 82 mm
PTFE, 2 m, 3 wire ! PNP|Normally Open (NO) ! 82 mm
Regular price From $382.05
Re-stocking soon

Estimated Delivery Time 2-3 weeks
