DW-HD-611-M12-200
| Operating range | 4 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | Silicone, 2 m, 3 wire |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | 0...+150°C |
| Sensor Height | 63 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|

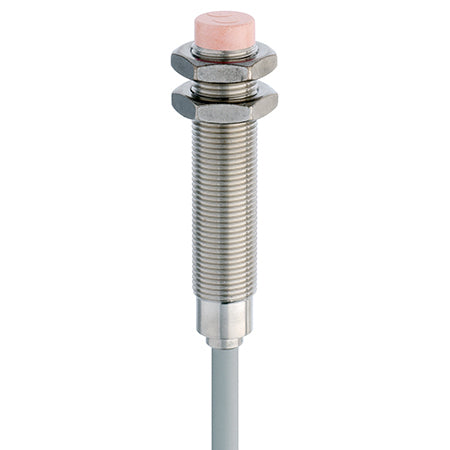

Inductives Sensor High-temperature-Classics-Series-600-M12-Non-embeddable-4-mm-0-150°C DW-HD-611-M12-200
High temperature Classics Series 600 M12 Non embeddable 4 mm 0...+150°C
SKU: DW-HD-611-M12-200
Regular price
$297.95
Secure Checkout
Need help? Click here to contact an expert
DW-HD-611-M12-200
| Operating range | 4 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | Silicone, 2 m, 3 wire |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | 0...+150°C |
| Sensor Height | 63 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
Inductives Sensor High-temperature-Classics-Series-600-M12-Non-embeddable-4-mm-0-150°C DW-HD-611-M12-200
