DW-AD-503-P20

Operating range 3 mm
Switching frequency max. 500 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 500 bar
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection PUR, 2 m, 3 wire
Housing size [mm] M14
Enclosure rating IP 68
Housing material Stainless-steel V4A
Temperature range -25...+100°C
Sensor Height 56 mm
Mounting Embeddable
Interface IO-Link
Type Format
Datasheet pdf
IODD zip zip
CE Certificate pdf
UKCA Certificate pdf
UL Certificate pdf

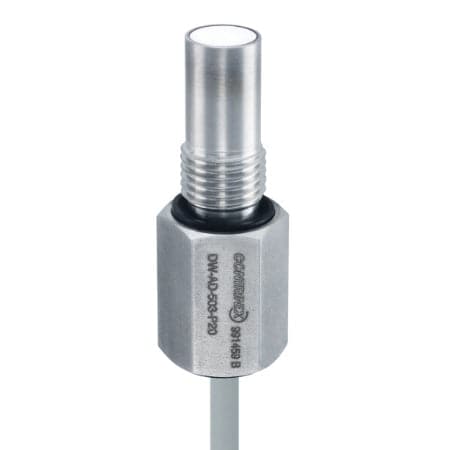

Inductives Sensor High-pressure-Extra-Distance-Series-500-M14-Embeddable-3-mm DW-AD-503-P20

High pressure Extra Distance Series 500 M14 Embeddable 3 mm

SKU: DW-AD-503-P20

Connection: PUR, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length and distance to thread: 56 mm|18.6 mm
PUR, 2 m, 3 wire ! PNP|Normally Open (NO)/IO-Link ! 56 mm|18.6 mm
PUR, 2 m, 3 wire ! PNP|Normally Closed (NC) ! 56 mm|18.6 mm
M12 4-pin ! PNP|Normally Open (NO)/IO-Link ! 65 mm|18.6 mm
M12 4-pin ! PNP|Normally Closed (NC) ! 65 mm|18.6 mm
PUR, 2 m, 3 wire ! NPN|Normally Open (NO) ! 56 mm|18.6 mm
PUR, 2 m, 3 wire ! NPN|Normally Closed (NC) ! 56 mm|18.6 mm
M12 4-pin ! NPN|Normally Open (NO) ! 65 mm|18.6 mm
M12 4-pin ! NPN|Normally Closed (NC) ! 65 mm|18.6 mm
Regular price From $242.30
Re-stocking soon

Estimated Delivery Time 2-3 weeks
