Short Specifications

DW-AD-503-P12-625

Operating range 1.5 mm
Switching frequency max. 600 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 500 bar
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection PUR, 2 m, 3 wire
Housing size [mm] M12
Enclosure rating IP 68
Housing material Stainless-steel V2A
Temperature range -25...+100°C
Sensor Height 47 mm
Mounting Embeddable
Interface IO-Link

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

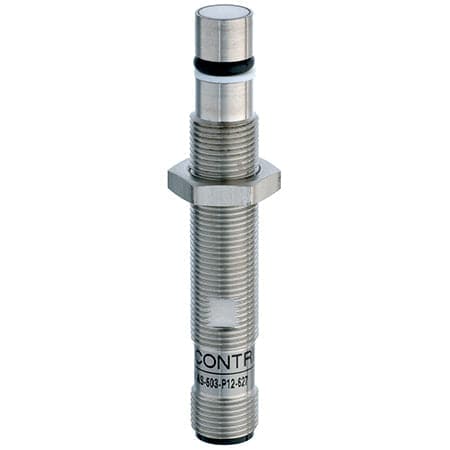

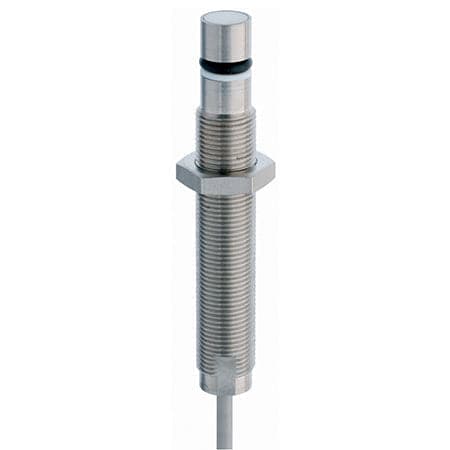

High pressure Extra Distance Series 500 M12 Embeddable 1.5 mm

SKU: DW-AD-503-P12-625

Connection: PUR, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length and distance to thread: 47 mm|18 mm
Price:
Sale price$233.40
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
