Short Specifications

LGR-U50MA-PMS-407

Operating range 0...50 mm
Switching frequency max. 5000 Hz
Supply voltage 10...30
Polarity PUSH-PULL
Output Light-on/Dark-on/IO-Link
Sensitivity adjustment 18-turn pot.
Connection M8 3-pin
Housing size [mm] U 50
Enclosure rating IP 67
Housing material Die-cast zinc
Resolution 0.3 mm
Temperature range -25...+60°C
Light source LED, red 660 nm
Interface IO-Link
Operating principle Through-beam
Sensing range max. 0...50 mm

Downloads

Type Format
Datasheet pdf
IODD zip pdf

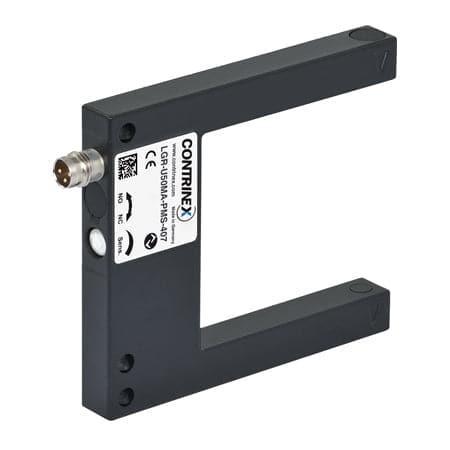

Fork Through beam U 50 0...50 mm Die cast zinc 18 turn pot. LED, red 660 nm

SKU: LGR-U50MA-PMS-407

Price:
Sale price$174.98
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
