Short Specifications


Operating range 0...100 mm
Switching frequency max. 5000 Hz
Supply voltage 10...30
Polarity PUSH-PULL
Output Light-on/Dark-on/IO-Link
Sensitivity adjustment 18-turn pot.
Connection M8 3-pin
Housing size [mm] U 100
Enclosure rating IP 67
Housing material Die-cast zinc
Resolution 0.3 mm
Temperature range -25...+60°C
Light source LED, red 660 nm
Interface IO-Link
Operating principle Through-beam
Sensing range max. 0...100 mm


Type Format
Datasheet pdf
IODD zip pdf

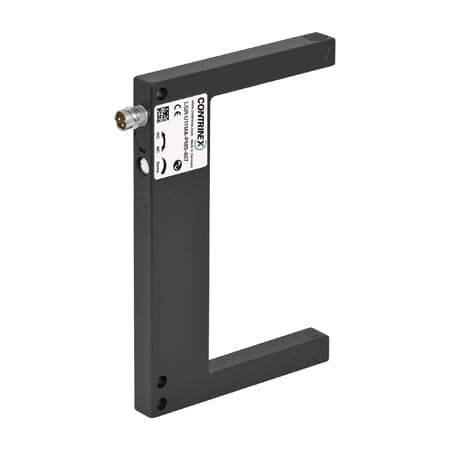

Fork Through beam U 100 0...100 mm Die cast zinc 18 turn pot. LED, red 660 nm


Sale price$191.26
Re-stocking soon

Estimated Delivery Time 2-3 weeks
