LGI-U10MA-PMS-407
| Operating range | 0...10 mm |
| Switching frequency max. | 10000 Hz |
| Supply voltage | 10...30 |
| Polarity | PUSH-PULL |
| Output | Light-on/Dark-on/IO-Link |
| Sensitivity adjustment | 18-turn pot. |
| Connection | M8 3-pin |
| Housing size [mm] | U 10 |
| Enclosure rating | IP 67 |
| Housing material | Die-cast zinc |
| Resolution | 0.2 mm |
| Temperature range | -25...+60°C |
| Light source | LED, infrared 880 nm |
| Interface | IO-Link |
| Operating principle | Through-beam |
| Sensing range max. | 0...10 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|

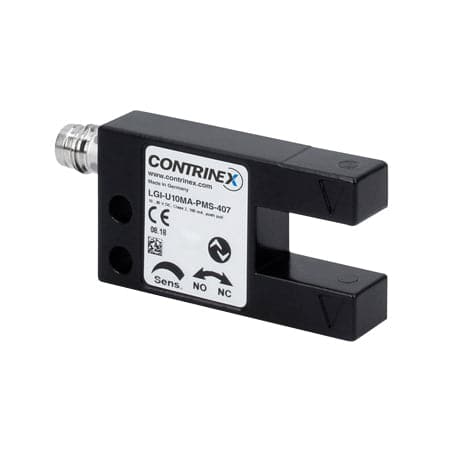

Photoelectrics Sensor Fork-Through-beam-U-10-010-mm-Die-cast-zinc-18-turn-pot-LED-infrared-880-nm LGI-U10MA-PMS-407
Fork Through beam U 10 0...10 mm Die cast zinc 18 turn pot. LED, infrared 880 nm
SKU: LGI-U10MA-PMS-407
Regular price
$168.45
Secure Checkout
Need help? Click here to contact an expert
