DW-AS-70B-M12
| Operating range | 6 mm |
| Switching frequency max. | 600 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 80 bar |
| Polarity | NPN |
| Output | Changeover (NO/NC) |
| Connection | M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V4A |
| Temperature range | -25...+85°C |
| Sensor Height | 60 mm |
| Mounting | Embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|

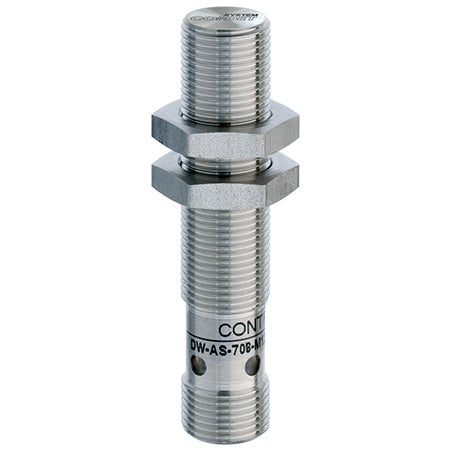

Inductives Sensor Extreme-Full-Inox-Series-700-Stainless-steel-V4A-M12-Embeddable-6-mm DW-AS-70B-M12
Extreme Full Inox Series 700 Stainless steel V4A M12 Embeddable 6 mm
SKU: DW-AS-70B-M12
Regular price
$139.20
Secure Checkout
Need help? Click here to contact an expert
