DW-AD-711-M18
| Operating range | 20 mm |
| Switching frequency max. | 200 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 60 bar |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M18 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 50 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|

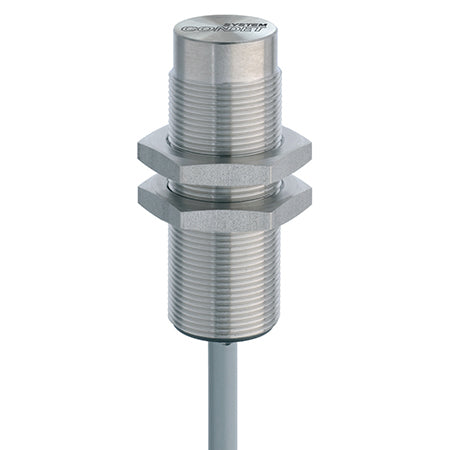

Inductives Sensor Extreme-Full-Inox-Series-700-Stainless-steel-V2A-M18-Non-embeddable-20-mm DW-AD-711-M18
Extreme Full Inox Series 700 Stainless steel V2A M18 Non embeddable 20 mm
SKU: DW-AD-711-M18
Regular price
From $147.85
