Short Specifications


Operating range 3...5 mm
Switching frequency max. 10 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 40 bar
Polarity NPN
Output Normally Closed (NC)
Connection M12 4-pin
Housing size [mm] M30
Enclosure rating IP 68 / IP 69K
Housing material Stainless-steel V2A
Temperature range -25...+85°C
Sensor Height 63.5 mm
Mounting Non-embeddable
Interface Standard output


Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

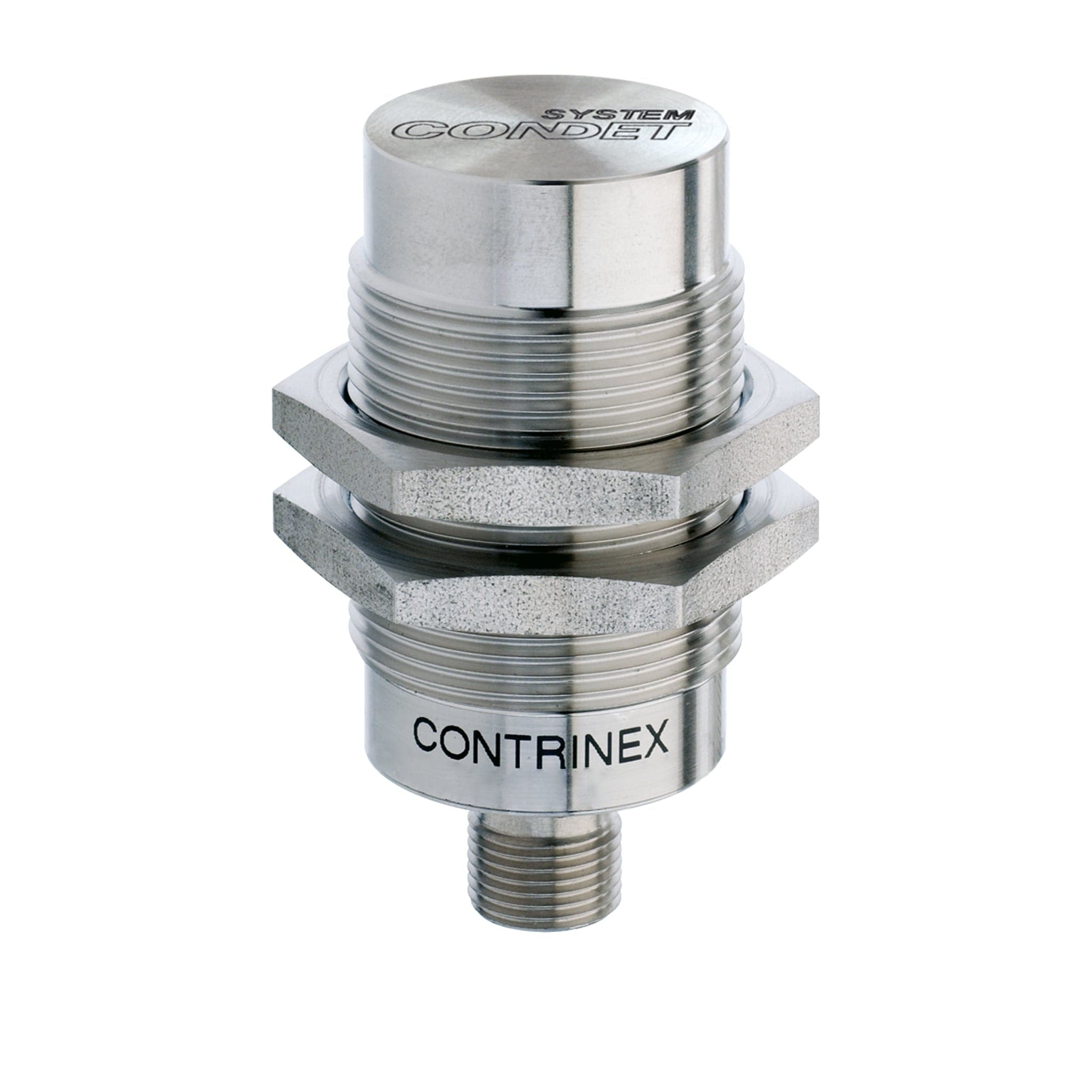

Extreme Full Inox Series 700 M30 Non embeddable 3...5 mm

SKU: DW-AS-712-M30-618

Connection: M12 4-pin
Polarity and Output: NPN|Normally Closed (NC)
Sensor length: 63.5 mm
Sale price$1,001.85
Re-stocking soon

Estimated Delivery Time 2-3 weeks
